50 mm Alloy-Wheel Center Cap

OEM CROSS-REF60652886

PETG1 FILECC-BYBody panels & exterior trim

PART RECORDREF 2226

PART: 50 mm Alloy-Wheel Center Cap
OEM: 60652886
FITS: 145 / 146 (Tipo 930), 147 Tipo 937, 156 Tipo 932, 166 Tipo 936, 4C Tipo 960, GT Tipo 937, GTV (Tipo 916), MiTo Tipo 955, Spider Tipo 916

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 22261 geometry fileInteractive preview

Fitment photographs

3 PLATES

50 mm Alloy-Wheel Center Cap — image 1 of 3

PLATE 01 / 03No caption recorded

File manifest

MAN-2226

[01]wheel-center-cap-50mm.stlwheel-center-cap-50mm.stl.STL
[02]Bounding box49.978 × 49.978 × 16.098 mm
[03]Volume7,657.267 mm³

Owner notes

BY DENNIS0477_376596

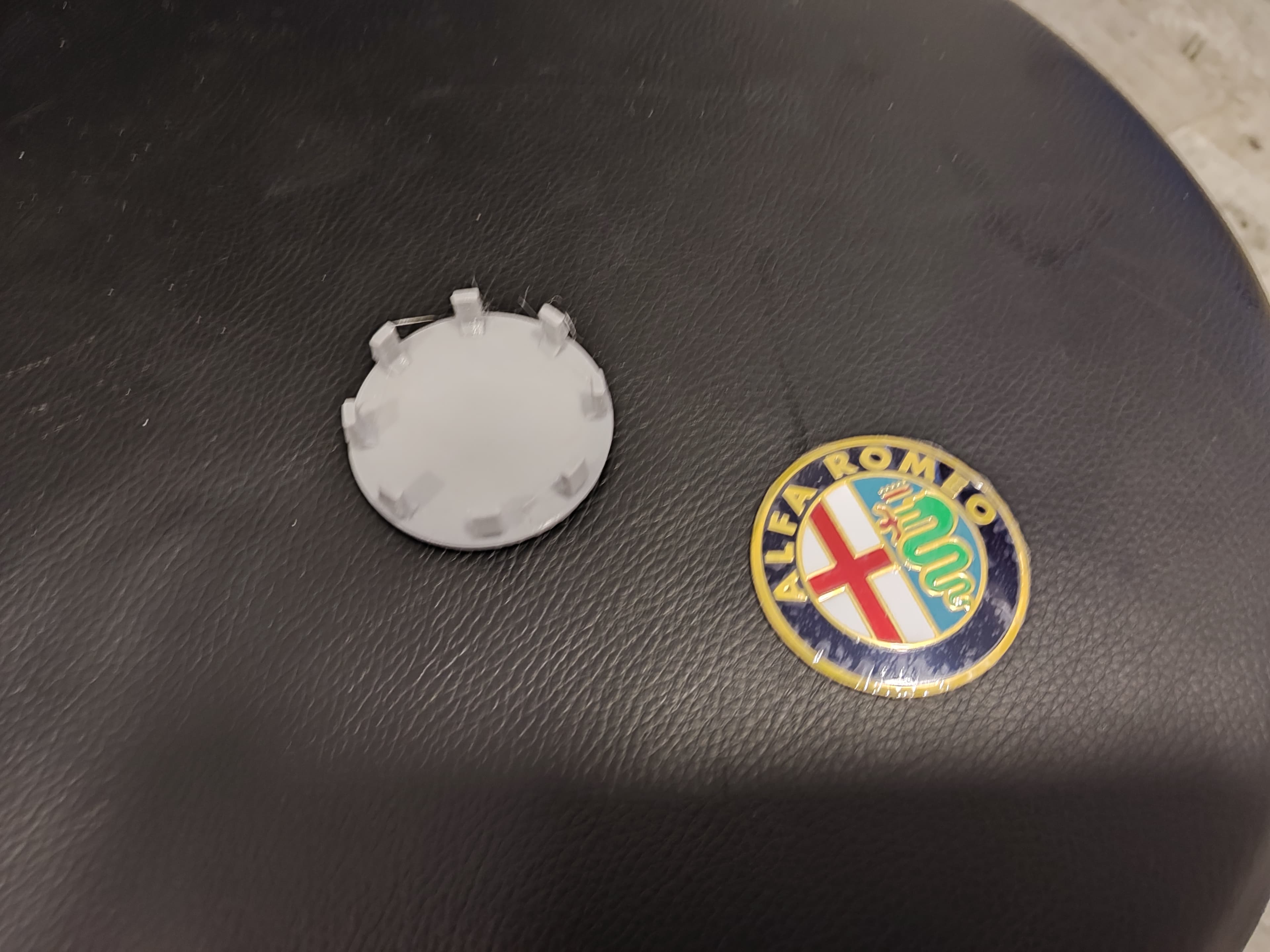

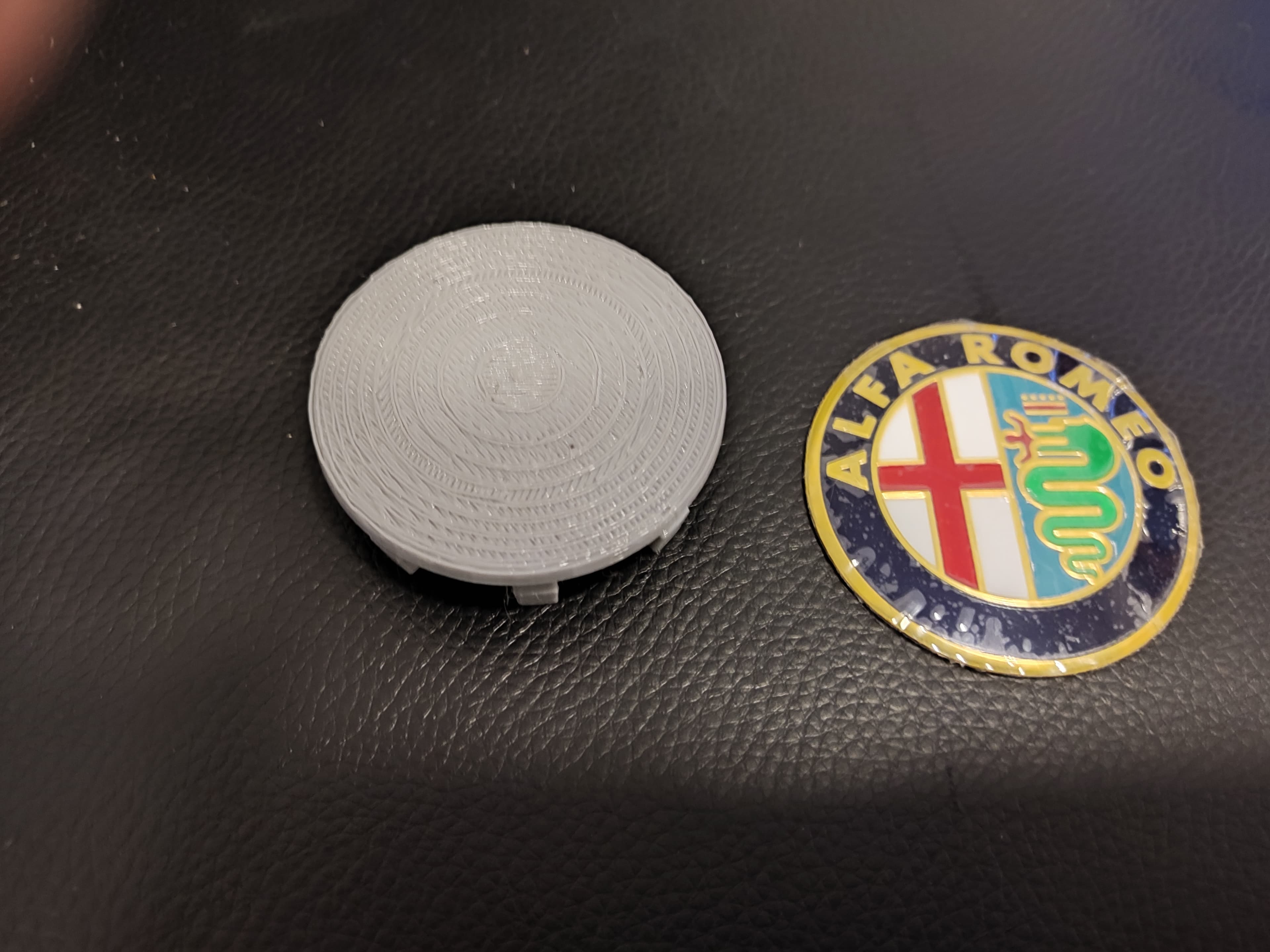

Replacement 50 mm center cap for alloy wheels using OEM 60652886. The source recommends printing solid PETG because its PLA retaining clips broke, and the photographed part accepts a separate 50 mm emblem. Confirm the wheel opening and original cap diameter before installation. The single-cap STL is supplied; the optional four-cap print plate and editable SketchUp source remain preserved in the audit archive.

View original source ↗
