Every filed part, in one index.

Search community-made geometry by part name, OEM cross-reference, model, generation, or system. Fitment records stay attached to the file.

168 recordsOwner maintainedFree to download
01Records on file
168 entries
Part2304
Jacking-Point Protective Cover Assembly

Jacking-Point Protective Cover Assembly

Multi-piece protective cover for the vehicle's jacking-point opening. The creator designed it as a direct replacement for a missing or damaged factory cover and states that it protects the opening from water, salt, dirt and road debris. Print TLC1, TLC2 and TLC_Clip; glue the body pieces as described and print the clip quantity needed for one cover. Reuse sound original retainers or tested automotive fixing clips. This is a protective trim cover only: remove it as required before lifting, never place a jack or stand on the print, and confirm secure retention after installation.

ABS · PETGBody panels & exterior trim
FitsTonale Tipo 965
0by CICHR
Part2303
Reinforced Forward-Collision Radar Cover

Reinforced Forward-Collision Radar Cover

Replacement forward-collision radar cover with thicker clips and extended coverage intended to reduce water, snow and dirt accumulation. The creator test-fitted it on a late-2018 vehicle. Remove it immediately if any radar or driver-assistance warning appears.

ABS · PETGExterior lighting, cameras & sensors
FitsStelvio Tipo 949
0by hertz98
Part2302
Sun-Visor Gap Cover

Sun-Visor Gap Cover

Clip-on cover that blocks the light gap around the sun-visor retaining point while preserving normal visor operation. The creator explicitly identifies 2018-and-later Alfa Romeo Giulia and Stelvio fitment and recommends PETG, ABS or ASA for summer cabin heat.

ABS · PETGCabin trim, cargo & roof
FitsGiulia Tipo 952 · Stelvio Tipo 949
0by akukoba
Part2301
Sun-Visor Hole Cap

Sun-Visor Hole Cap

Cap for the opening in the sun visor. The source explicitly identifies Alfa Romeo Stelvio fitment. Compare the opening and clip geometry before installation and use a cabin-heat-resistant material.

ABS · PETGCabin trim, cargo & roof
FitsStelvio Tipo 949
0by alexpex
Part2300
Forward-Collision Radar Shield

Forward-Collision Radar Shield

Clip-on shield for the original forward-collision radar cover to reduce water, dirt and snow accumulation. The creator explicitly states Alfa Romeo Stelvio and Giulia fitment and reports testing at all sensitivity settings without affecting operation. Remove it immediately if any radar or driver-assistance warning appears.

ABS · Nylon · PETGExterior lighting, cameras & sensors
FitsGiulia Tipo 952 · Stelvio Tipo 949
0by MatteoSoligo
Part2299
Rear-Wheel Splash Deflector Set

Rear-Wheel Splash Deflector Set

Replacement left and right deflectors fitted ahead of the rear wheels, with an optional reinforcement pad for a flexible print. The creator reports months of use. Print the deflectors in TPU for flexibility and the reinforcement pad in a stiff weather-resistant material; verify wheel, tyre, suspension and fastener clearance before use.

PETG · TPUBody panels & exterior trim
FitsStelvio Tipo 949
0by lukaszj
Part2298

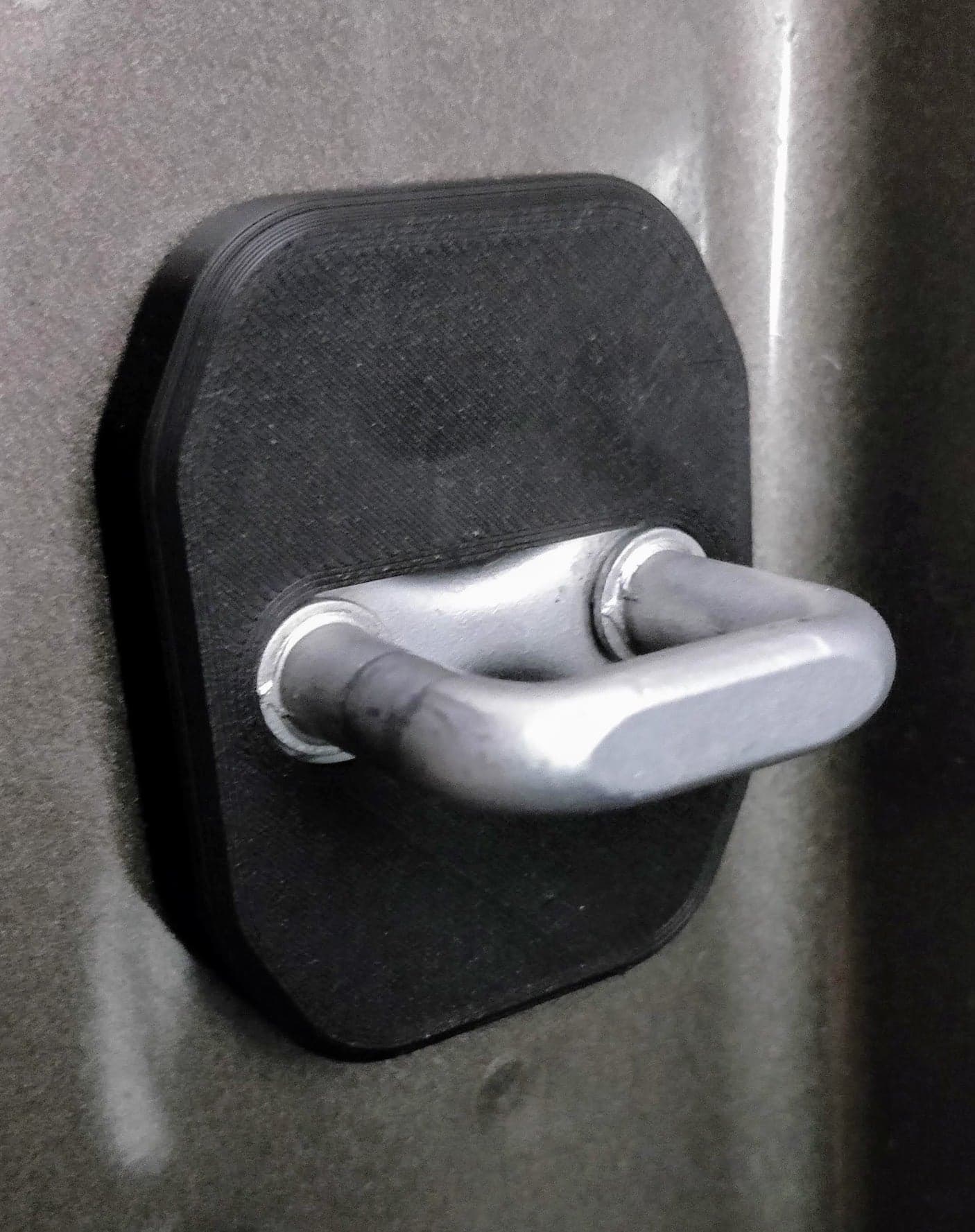

Door-Hinge Cover

Door-Hinge Cover

Snap-on door-hinge cover designed and test-fitted on a 2018 vehicle. It fits without adhesive according to the creator. Use PETG or another cabin/exterior-heat-resistant material and confirm the cover does not interfere with hinge travel.

PETGDoors, bonnet, boot & bed hardware
FitsStelvio Tipo 949
0by lukaszj
Part2297

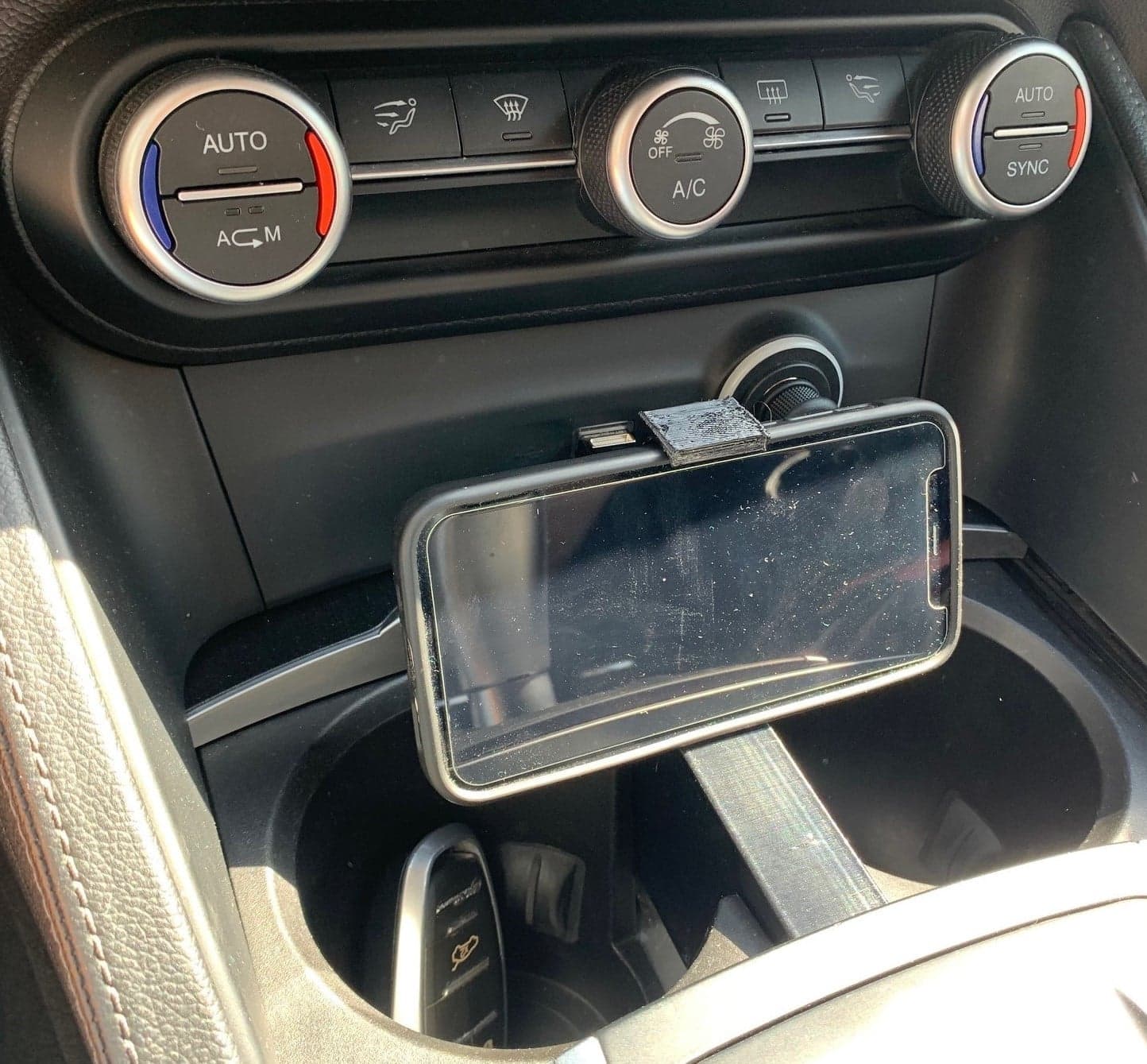

Compact-Phone Console Holder

Compact-Phone Console Holder

Console-mounted phone holder sized for an iPhone 12 Mini with a protective case. The creator explicitly states Alfa Romeo Stelvio and Giulia fitment and recommends PETG or ABS because cabin heat can deform PLA. Confirm device clearance and secure retention before driving.

ABS · PETGConsole & storage
FitsGiulia Tipo 952 · Stelvio Tipo 949
0by mnemo80
Part2296
HVAC Control-Knob Set

HVAC Control-Knob Set

Two-file replacement set for the outer and centre HVAC control knobs. Both validated STL variants are required because the centre control and outer controls use distinct geometry. The source identifies the Alfa Romeo 4C application directly but provides no year or trim split. PETG or ABS is functionally inferred for cabin heat, repeated handling and dimensional stability; compare each shaft interface before installation.

ABS · PETGDashboard & controls
Fits4C Tipo 960
0by CdnReprap
Part2295
Convertible-Roof Latch Handle

Convertible-Roof Latch Handle

Replacement handle for the convertible-roof latch on the 2015 4C Spider. The creator designed it after an original handle broke and supplies both the editable Fusion 360 file and validated STL; the editable source is archived. The creator used polycarbonate for southern heat and states ABS or PETG should also be suitable. Compare the pivot and latch engagement with the broken original and verify secure roof closure before driving.

ABS · PETGBody panels & exterior trim
Fits4C Tipo 960
0by Justin_Mac
Part2294

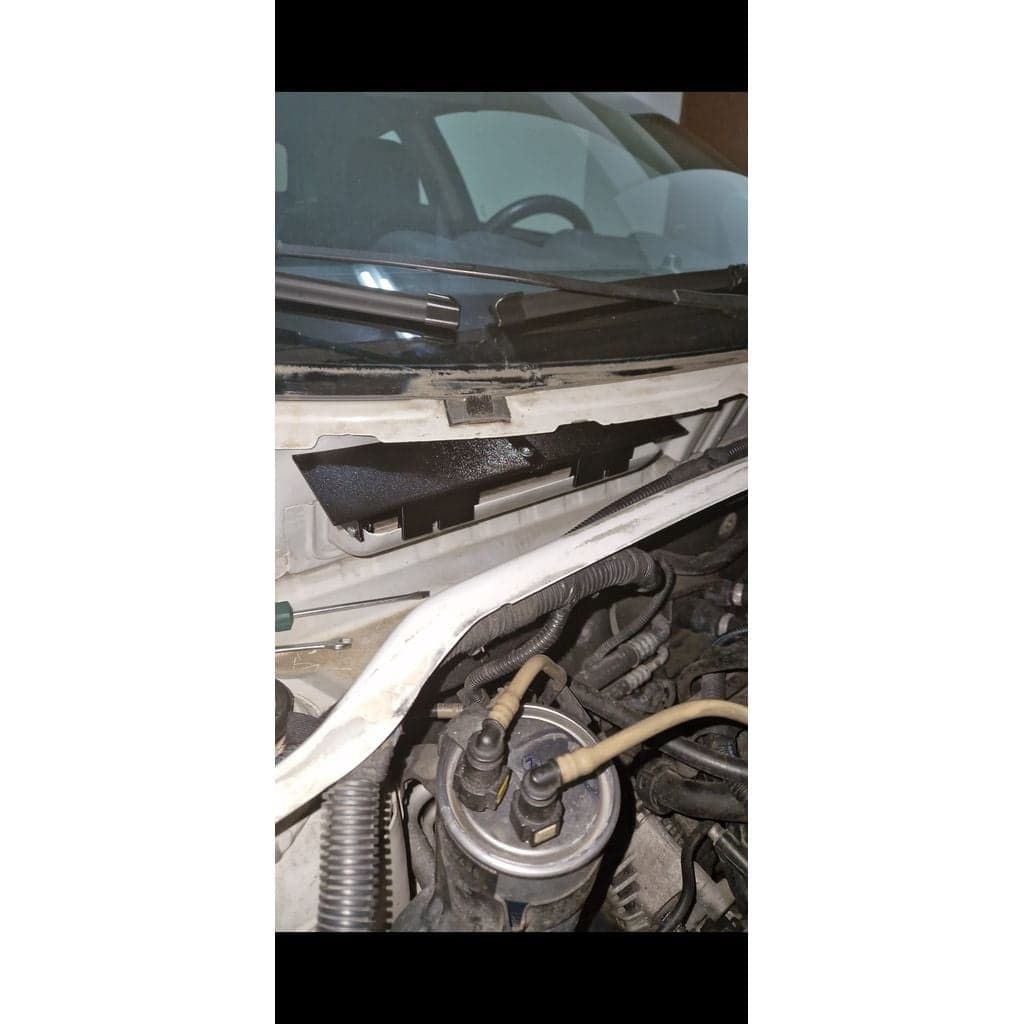

Extended Cabin-Air Intake Water Deflector

Extended Cabin-Air Intake Water Deflector

Extended two-piece version of the MiTo cabin-air intake water deflector, comprising the main deflector and flange. It provides more coverage than the ancestor and retains the original warning that seams may need adhesive sealing. Both validated 3MF pieces are required. PETG follows the tested material rationale of the underlying water-deflector design.

PETGWipers & washers
FitsMiTo Tipo 955
0remix by FIL_FPV
Part2293

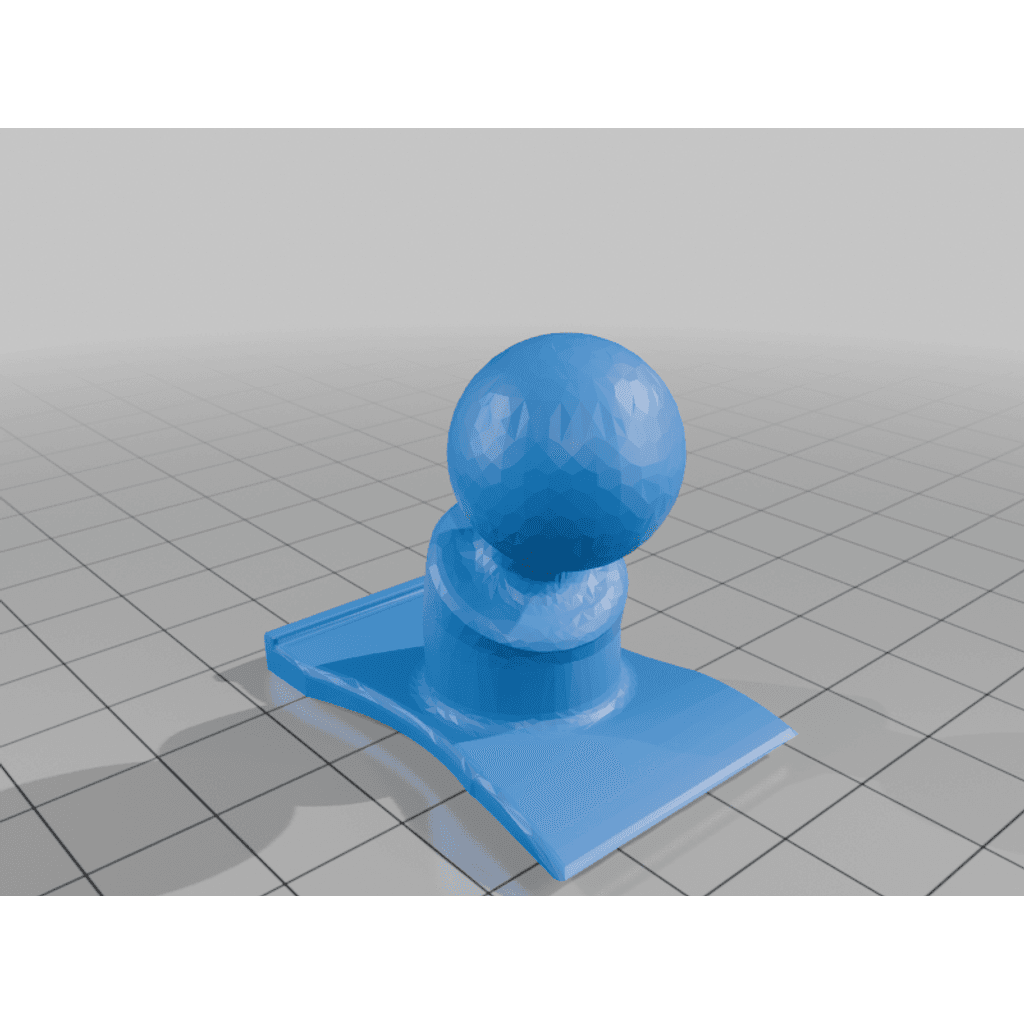

17 mm Console Phone-Holder Adapter

17 mm Console Phone-Holder Adapter

Strengthened MiTo console phone-holder adapter with a 17 mm ball for compatible mounts such as the Baseus Metal Age Gravity CD holder. The remix removes internal voids and recommends 100% infill or ten wall loops. The creator printed PETG-CF and explicitly recommends PETG, ASA or ABS rather than basic PLA.

ABS · PETGConsole & storage
FitsMiTo Tipo 955
0remix by tomaszd84
Part2292
Reinforced Console Phone-Holder Adapter

Reinforced Console Phone-Holder Adapter

Reinforced MiTo console phone-holder adapter remix that removes internal voids after the creator's print of the ancestor failed during bed removal. The source recommends 100% infill and reports PETG-CF experience. PETG or ABS is listed in the catalogue; verify the ball/socket interface and use dense walls or solid infill.

ABS · PETGConsole & storage
FitsMiTo Tipo 955
0remix by tomaszd84
Part2291

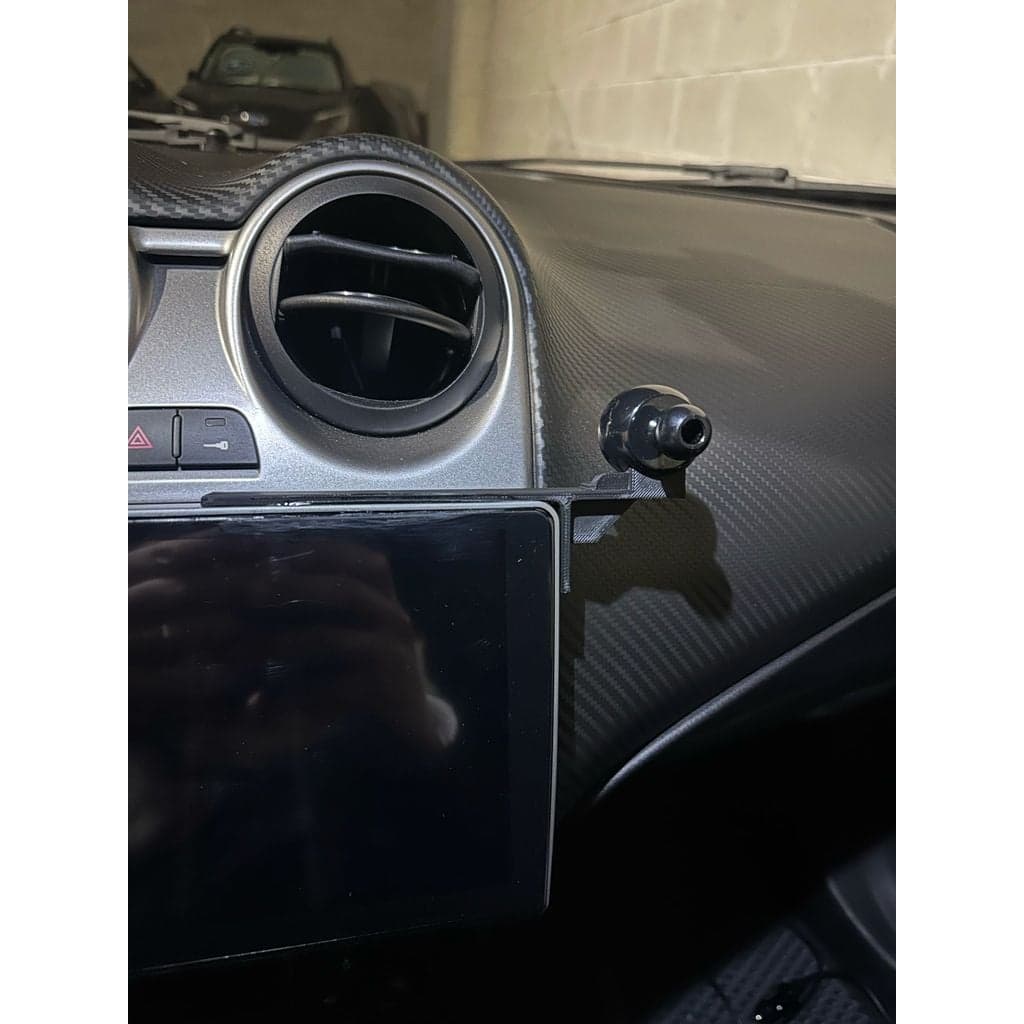

Console Mobile-Holder Adapter

Console Mobile-Holder Adapter

Console adapter for an aftermarket mobile-phone holder in an Alfa Romeo MiTo. The creator instructs left-hand-drive users to mirror the model before printing. PETG or ABS is inferred for cabin heat and sustained phone load. Verify handedness and the aftermarket holder interface before use.

ABS · PETGConsole & storage
FitsMiTo Tipo 955
0by vitali87
Part2290

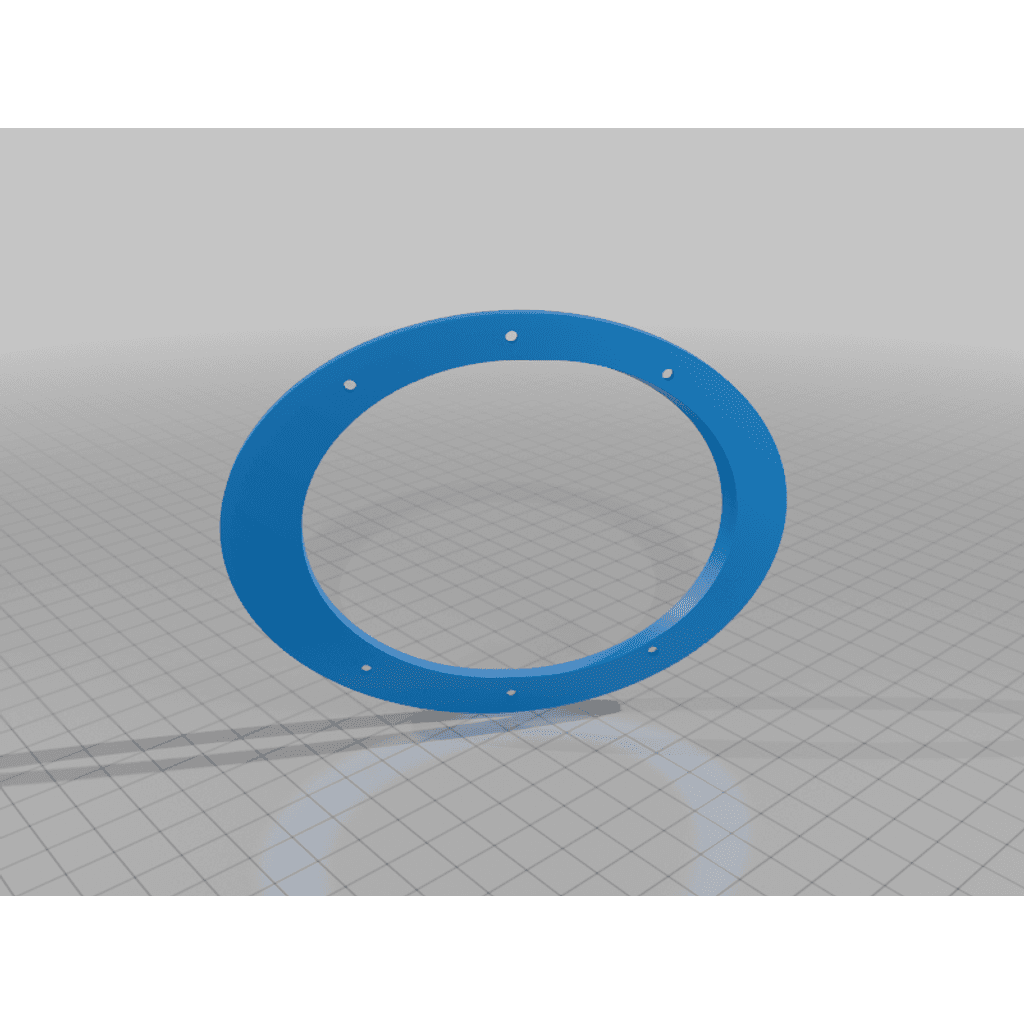

Magnetic Fog-Lamp Aperture Air Intake

Magnetic Fog-Lamp Aperture Air Intake

Two-piece magnetic air-intake assembly for the MiTo fog-lamp aperture, including the base duct and magnet/screw plate. The source specifies 10 x 2 mm neodymium magnets and M2.5 cylindrical cross-head screws, and notes that CNC aluminium gives the best result although the files are printable. PETG or ABS is inferred for exterior heat and weather exposure. Removing a road lamp or routing brake/engine air may be regulated; verify local legality and safe hose routing.

ABS · PETGBody panels & exterior trim
FitsMiTo Tipo 955
0by pippardo
Part2289

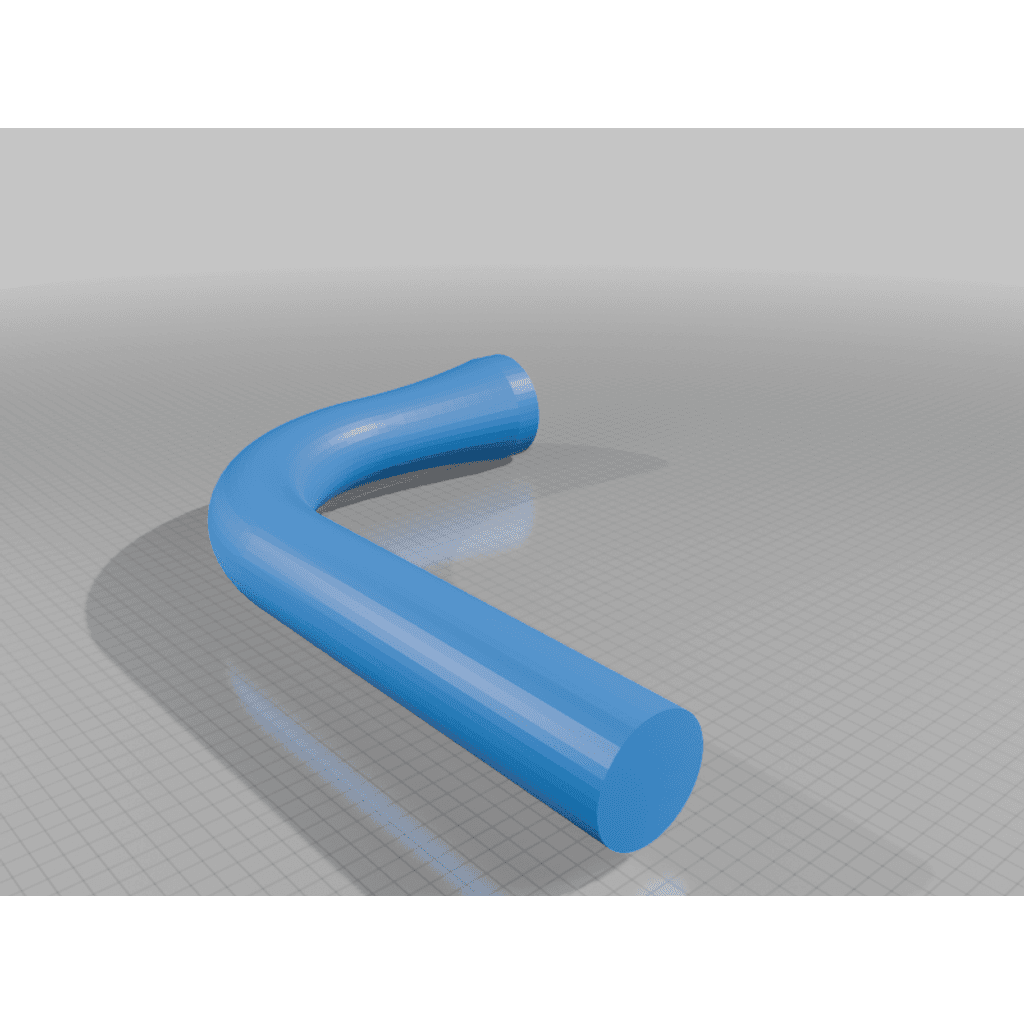

Carbon-Fibre Intake Lamination Mold

Carbon-Fibre Intake Lamination Mold

Printable lamination mold for fabricating a carbon-fibre intake for 155 hp and 170 hp MiTo T-Jet/MultiAir variants. This is a fabrication tool, not the finished intake. The creator says the completed system was designed and tested to reduce intake temperatures and advises editing the F3D source when a positive or negative mold is required; that editable source is archived. PETG is inferred for mold toughness and moderate resin-process heat.

PETGInstallation & alignment jigs
FitsMiTo Tipo 955
0by pippardo
Part2288

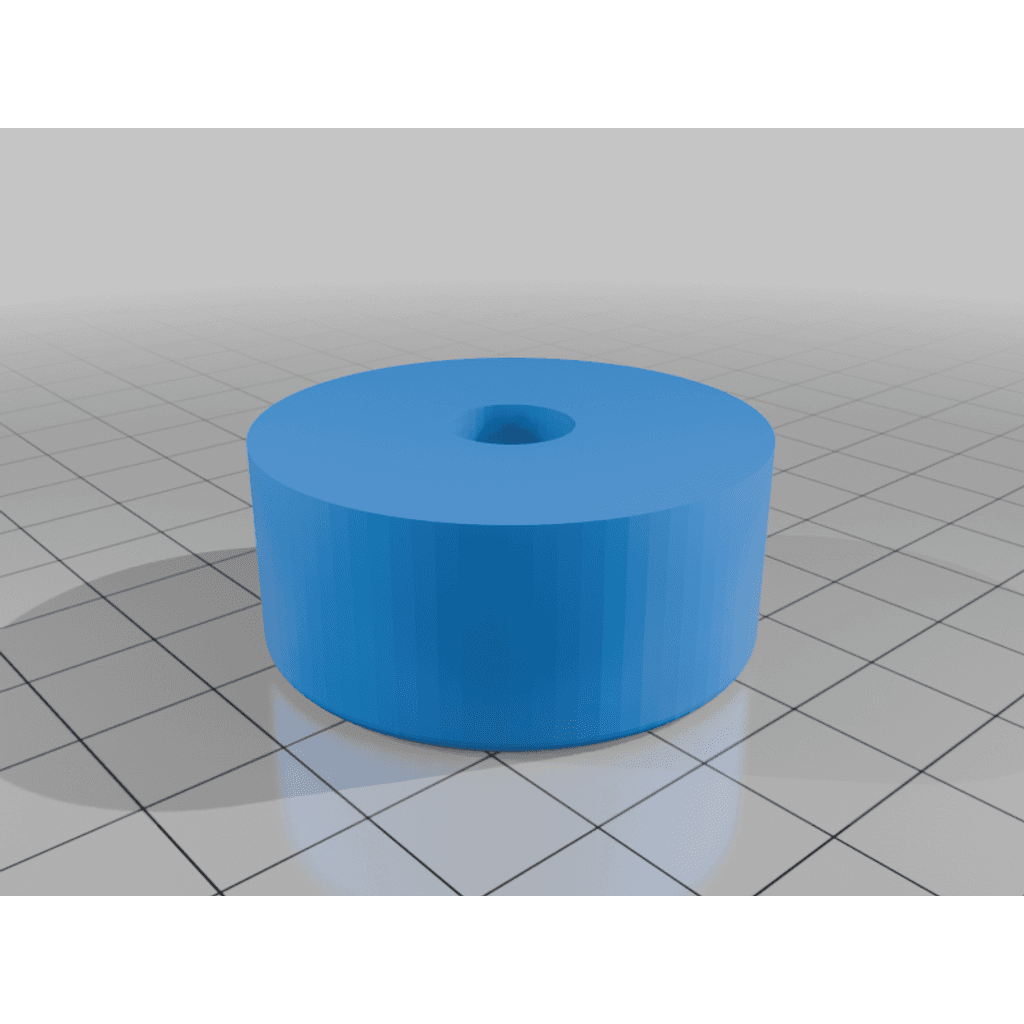

Thread-Forming Shifter Knob

Thread-Forming Shifter Knob

Two-piece MiTo shifter knob comprising the main knob and its top insert. The source notes there are no modeled threads and instructs the user to form the fit by carefully screwing it on by hand. PETG or ABS is inferred for cabin heat and repeated handling. Confirm shaft diameter and secure engagement before driving.

ABS · PETGDashboard & controls
FitsMiTo Tipo 955
0by andrenauta
Part2287

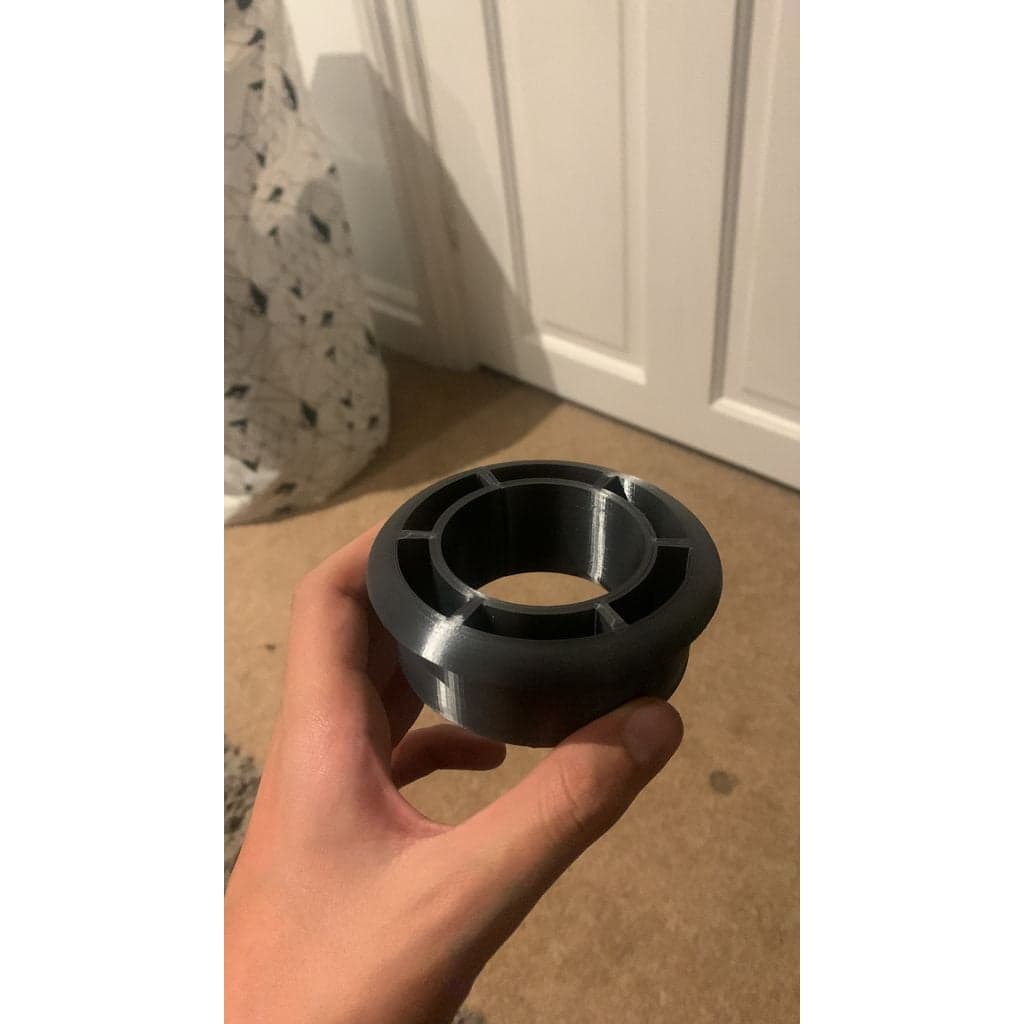

52 mm Boost-Gauge Mount

52 mm Boost-Gauge Mount

Dashboard/vent mount sized for a 52 mm boost gauge and explicitly designed for the Alfa Romeo MiTo. PETG or ABS is inferred for cabin heat and gauge weight. Confirm the 52 mm gauge body and surrounding trim clearance before installation.

ABS · PETGDashboard & controls
FitsMiTo Tipo 955
0by LukeTheLama
Part2286

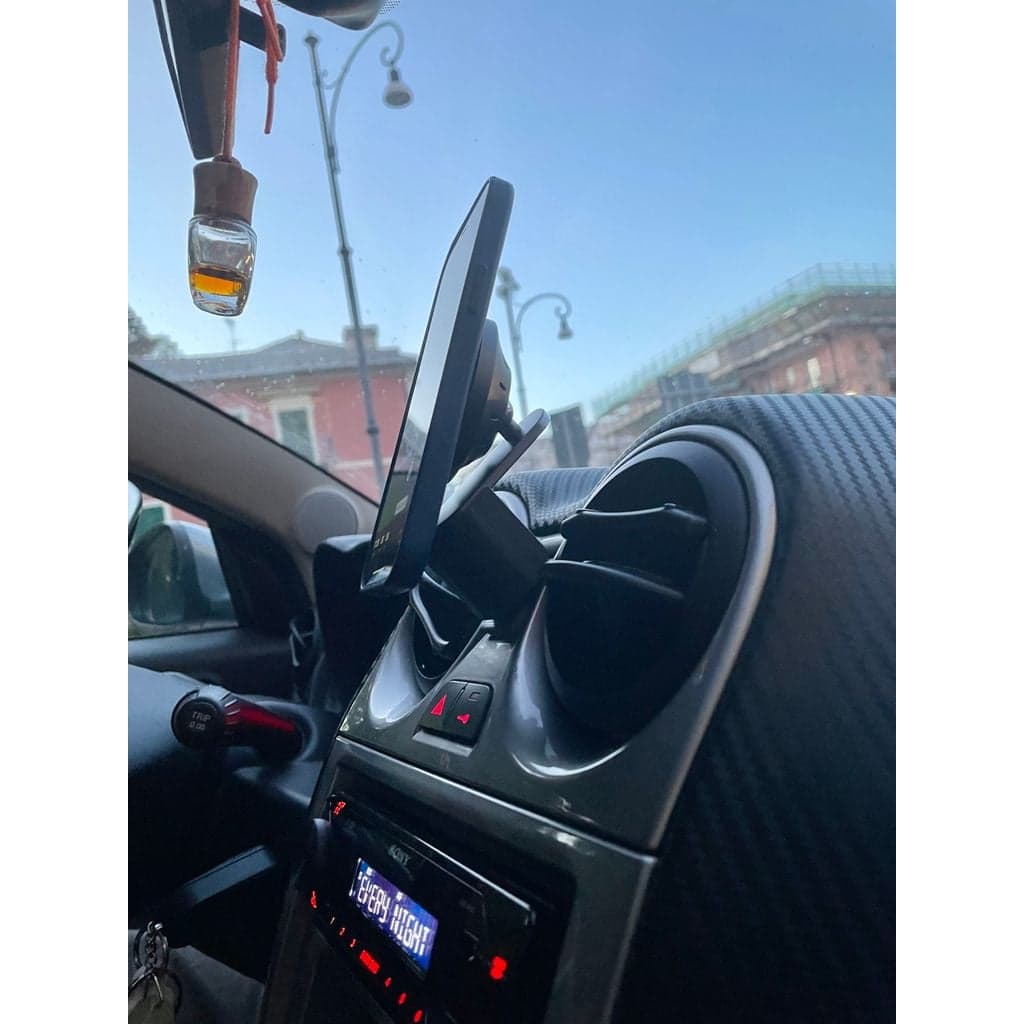

Console Wireless-Charger Mount

Console Wireless-Charger Mount

Console mount designed for a Baseus magnetic wireless charger in an Alfa Romeo MiTo. Optional double-sided mounting tape may be added for grip. The CC BY-NC-SA source remains eligible only while the catalogue is free and noncommercial. PETG or ABS is inferred for cabin heat.

ABS · PETGConsole & storage
FitsMiTo Tipo 955
0by sgiraz
Part2285

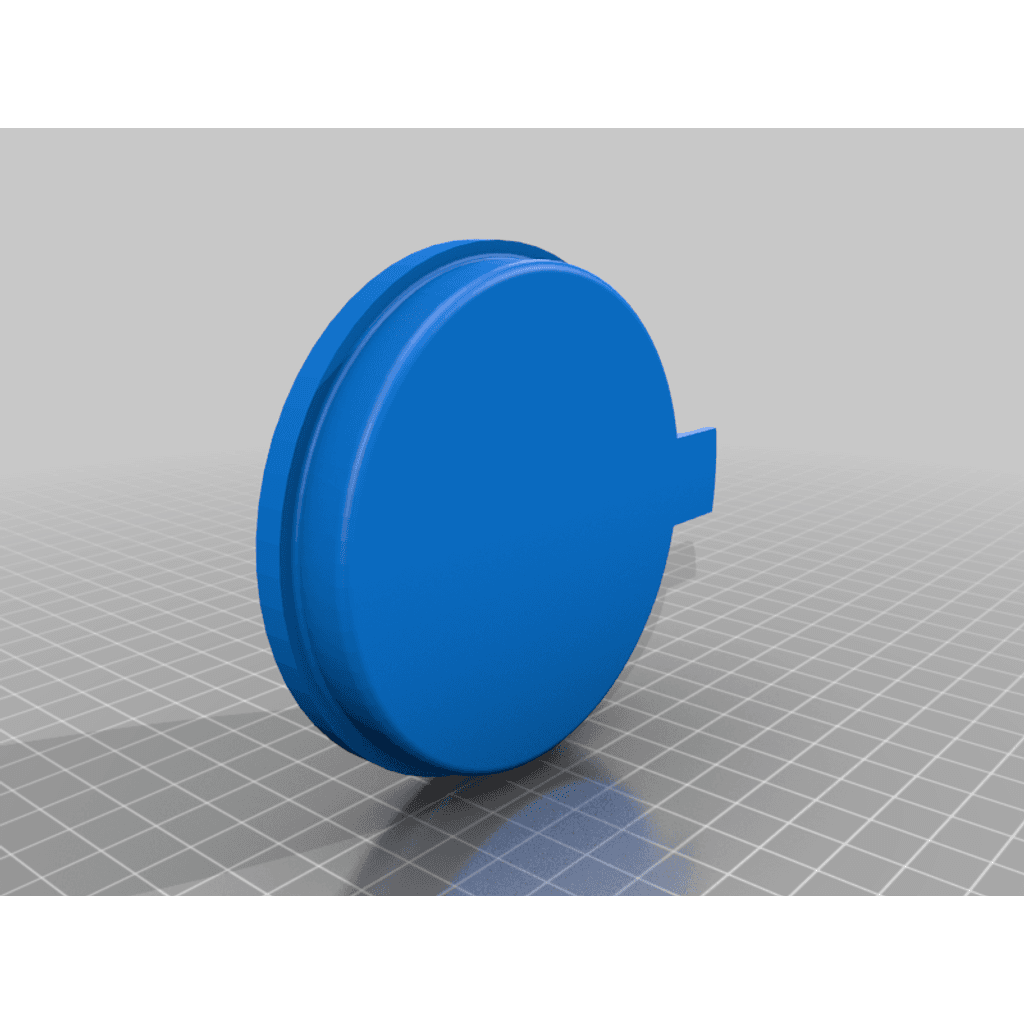

Headlamp Rear Access Cap

Headlamp Rear Access Cap

Replacement rear access cap for an Alfa Romeo MiTo headlamp housing. The source identifies the component and vehicle directly but provides no year or lamp-option split. PETG or ABS is inferred for heat and moisture resistance. Compare the tab, diameter and seal with the original before installation.

ABS · PETGExterior lighting, cameras & sensors
FitsMiTo Tipo 955
0by WimS66
Part2284

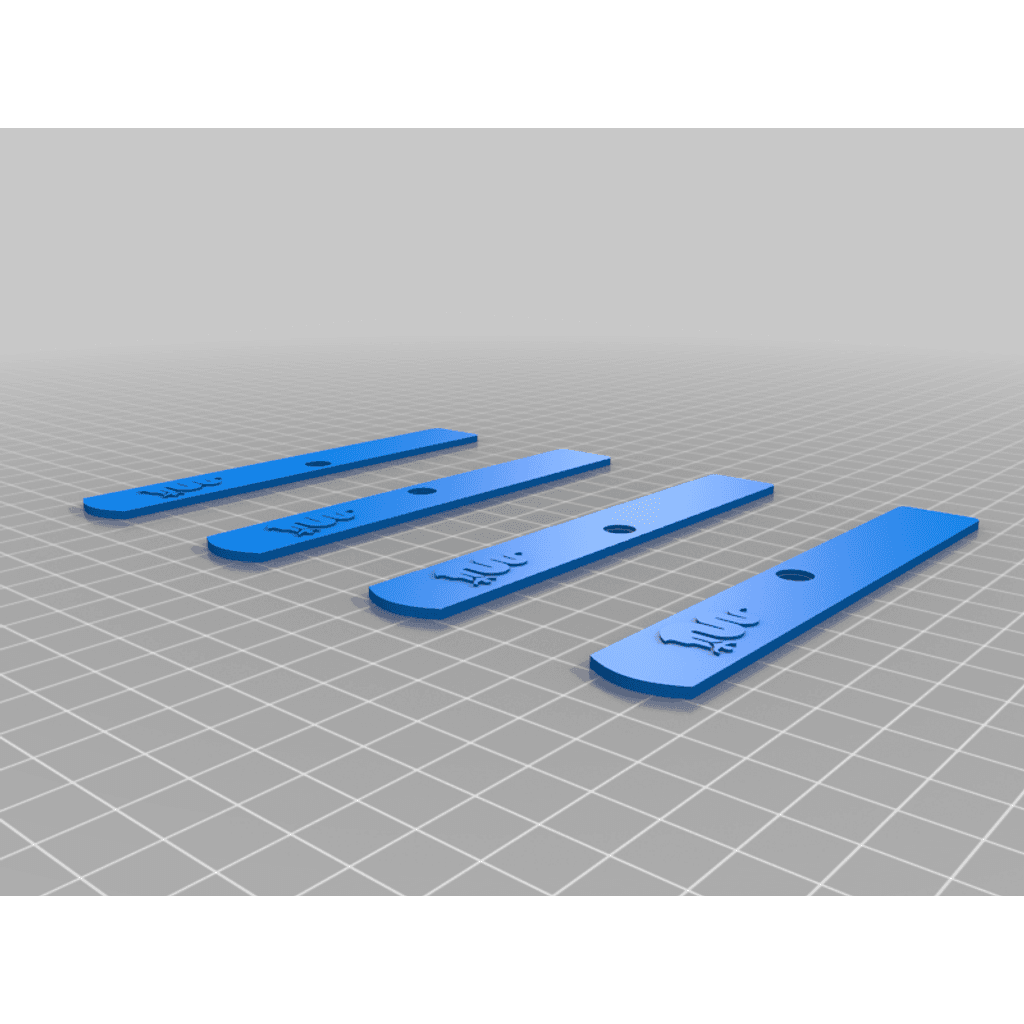

Roof-Rack Mounting-Hole Plug Set

Roof-Rack Mounting-Hole Plug Set

Set of distinct blanking plugs for the roof-rack screw openings on a 2010 MiTo. Each position differs; retain the source orientation and test every slot before fastening. The creator notes that transparent glue can prevent proud edges and that the plugs do not provide a watertight seal.

ABS · PETGBody panels & exterior trim
FitsMiTo Tipo 955
0by davus_maximus
Part2283

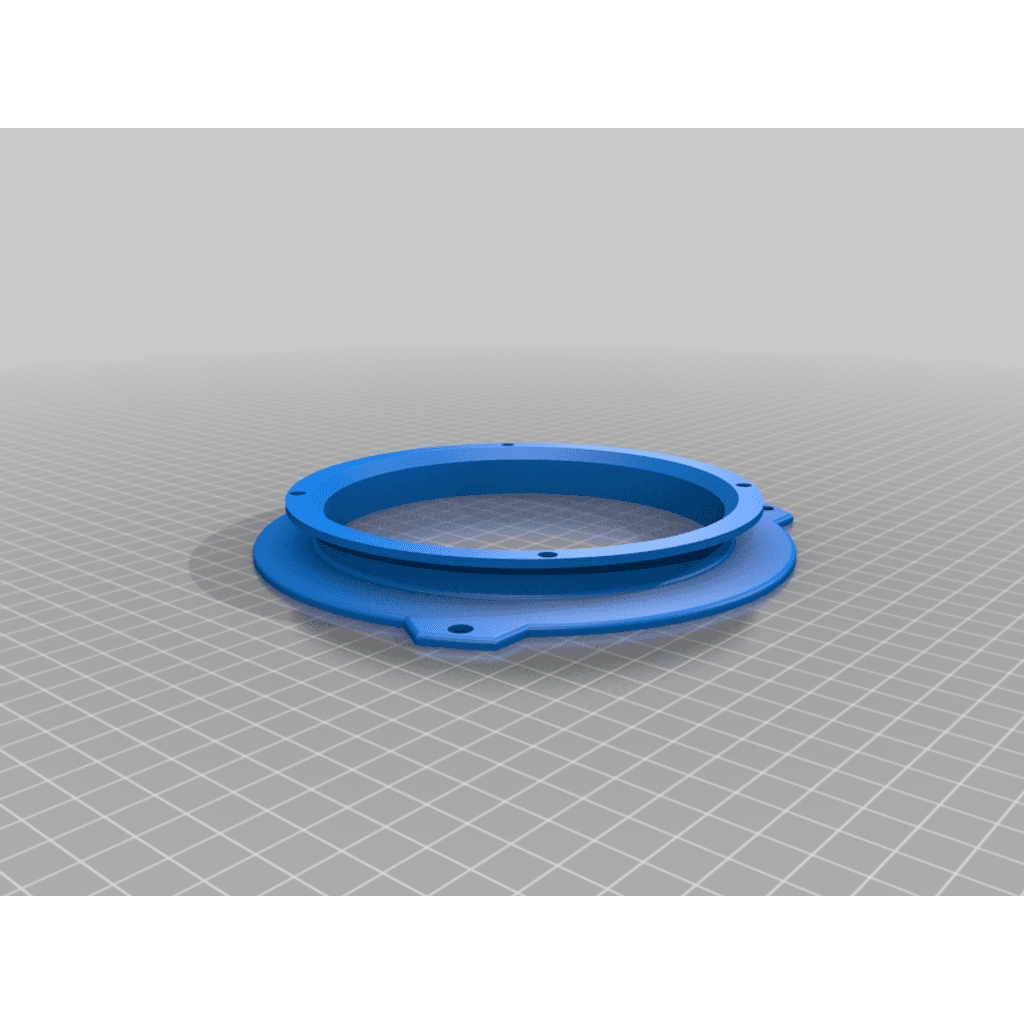

165 mm Door-Speaker Spacer

165 mm Door-Speaker Spacer

Spacer for mounting a 165 mm (6.5 inch) aftermarket speaker to the MiTo three-hole door pattern while clearing the window glass and door card. The creator reports perfect rear-door fit; the front mounting holes required slotting. The editable STEP file is archived, while the validated STL is supplied. Verify front/rear hole position before drilling.

ABS · PETGInterior doors & windows
FitsMiTo Tipo 955
0by SouthBear
Part2282

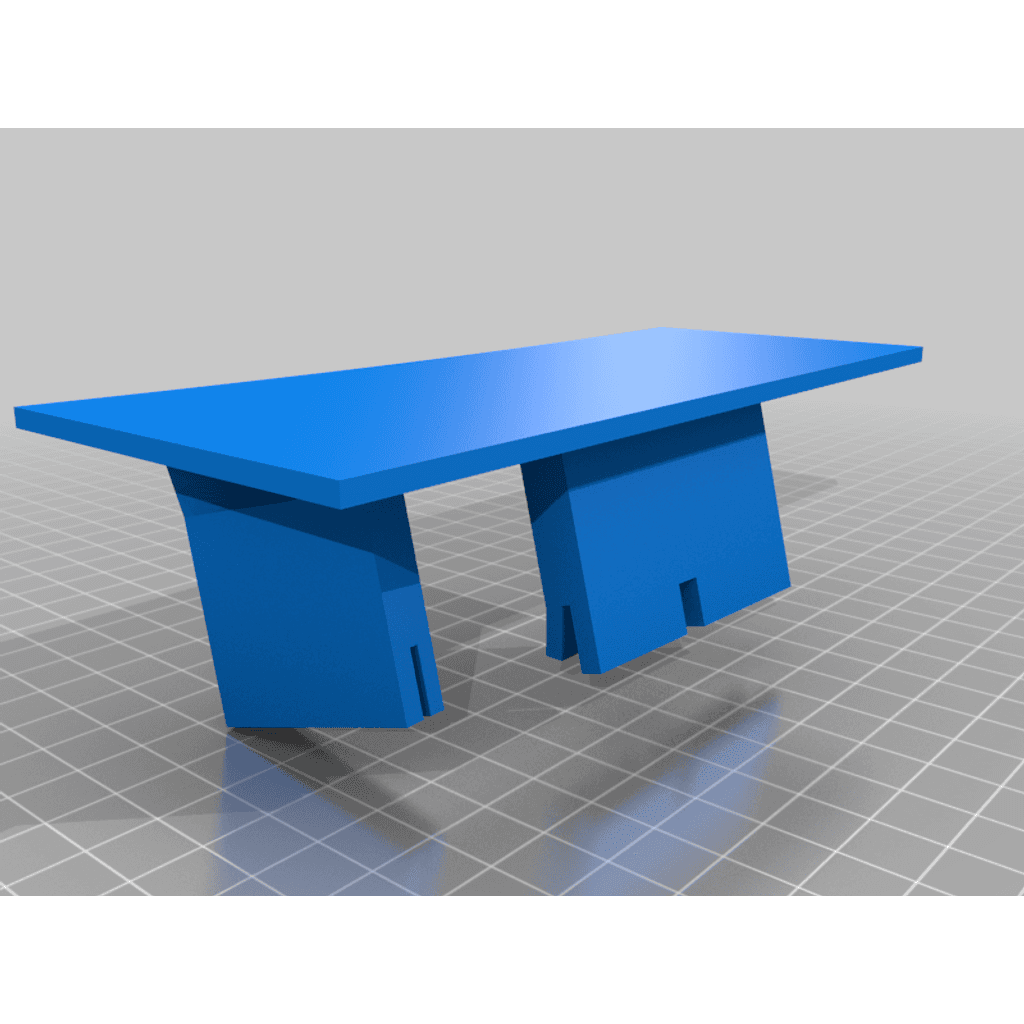

Cabin-Air Intake Water Deflector

Cabin-Air Intake Water Deflector

Scuttle-area deflector that redirects water away from the cabin-air intake when an aged windscreen/scuttle seal channels rain toward the vent. The creator used PETG and also sealed the joints with glue. It is an auxiliary deflector, not a substitute for repairing the drain or weather seal.

PETGWipers & washers
FitsMiTo Tipo 955
0by 21Dante
Part2281

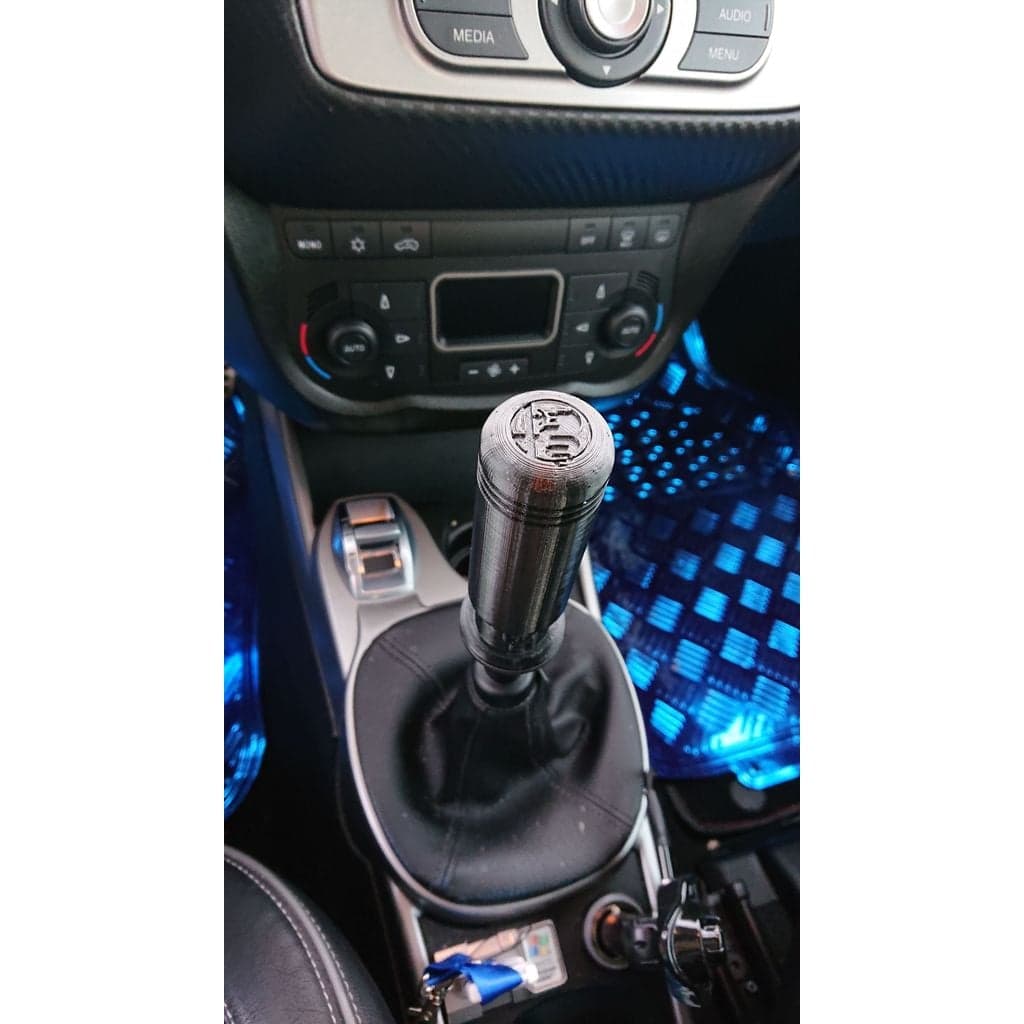

Manual Gear Knob

Manual Gear Knob

Replacement manual gear knob tested by the creator on an Alfa Romeo MiTo. The compact binary STL is the canonical upload; an equivalent larger ASCII STL representation is preserved in the archive. PETG or ABS is inferred for cabin heat and handling durability. Confirm the shaft engagement before driving.

ABS · PETGDashboard & controls
FitsMiTo Tipo 955
0by 3d_steady_go

24 of 168 shown
