Convertible-Roof Latch Handle

ABS · PETG1 FILECC-BYBody panels & exterior trim

PART RECORDREF 2295

PART: Convertible-Roof Latch Handle
OEM: —
FITS: 4C Tipo 960

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 22951 geometry fileInteractive preview

Fitment photographs

2 PLATES

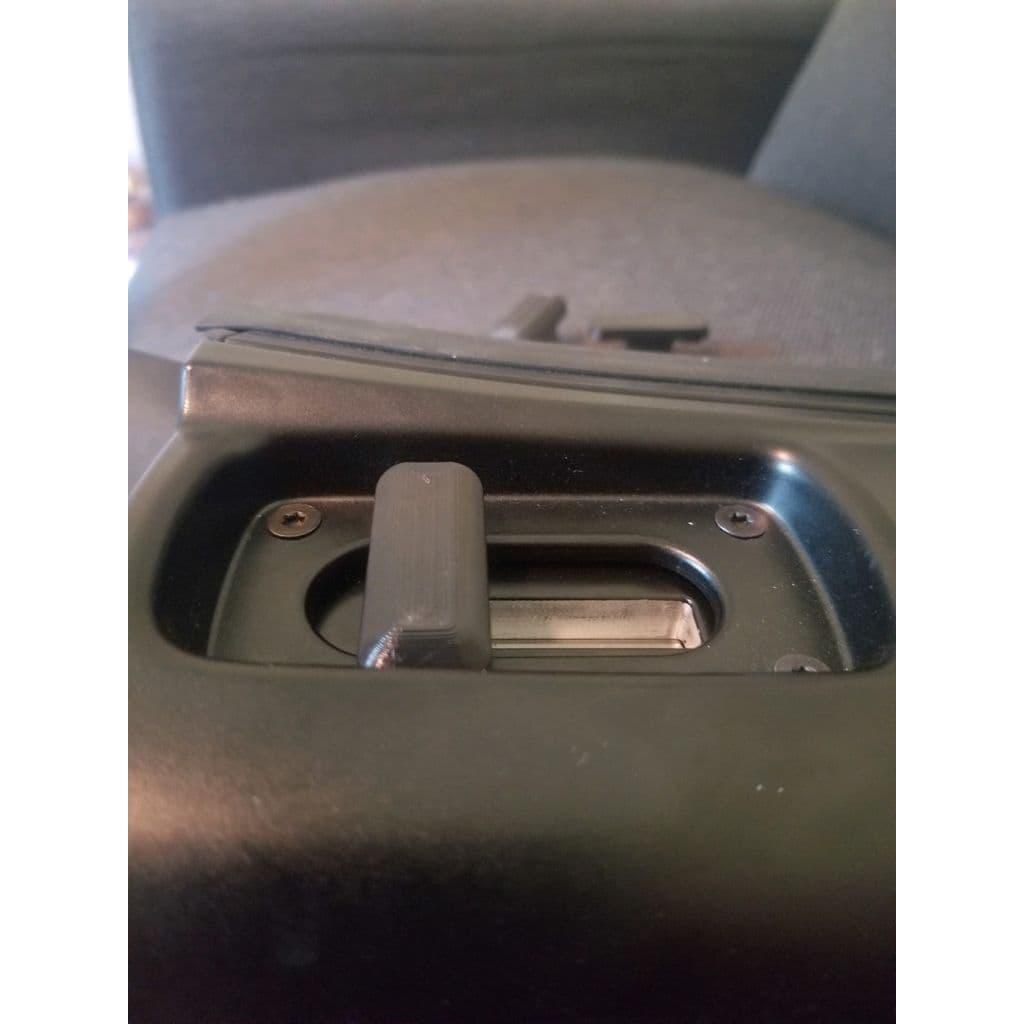

Convertible-Roof Latch Handle — image 1 of 2

PLATE 01 / 02No caption recorded

File manifest

MAN-2295

[01]alfa_knob_v6.stlalfa_knob_v6.stl.STL
[02]Bounding box43.500 × 17.000 × 16.000 mm
[03]Volume6,336.667 mm³

Owner notes

BY JUSTIN_MAC

Replacement handle for the convertible-roof latch on the 2015 4C Spider. The creator designed it after an original handle broke and supplies both the editable Fusion 360 file and validated STL; the editable source is archived. The creator used polycarbonate for southern heat and states ABS or PETG should also be suitable. Compare the pivot and latch engagement with the broken original and verify secure roof closure before driving.

View original source ↗
