Jacking-Point Protective Cover Assembly

ABS · PETGMULTI-PART3 FILESCC-BY-NC-SABody panels & exterior trim

PART RECORDREF 2304

PART: Jacking-Point Protective Cover Assembly
OEM: —
FITS: Tonale Tipo 965

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 23043 geometry filesInteractive preview

Fitment photographs

3 PLATES

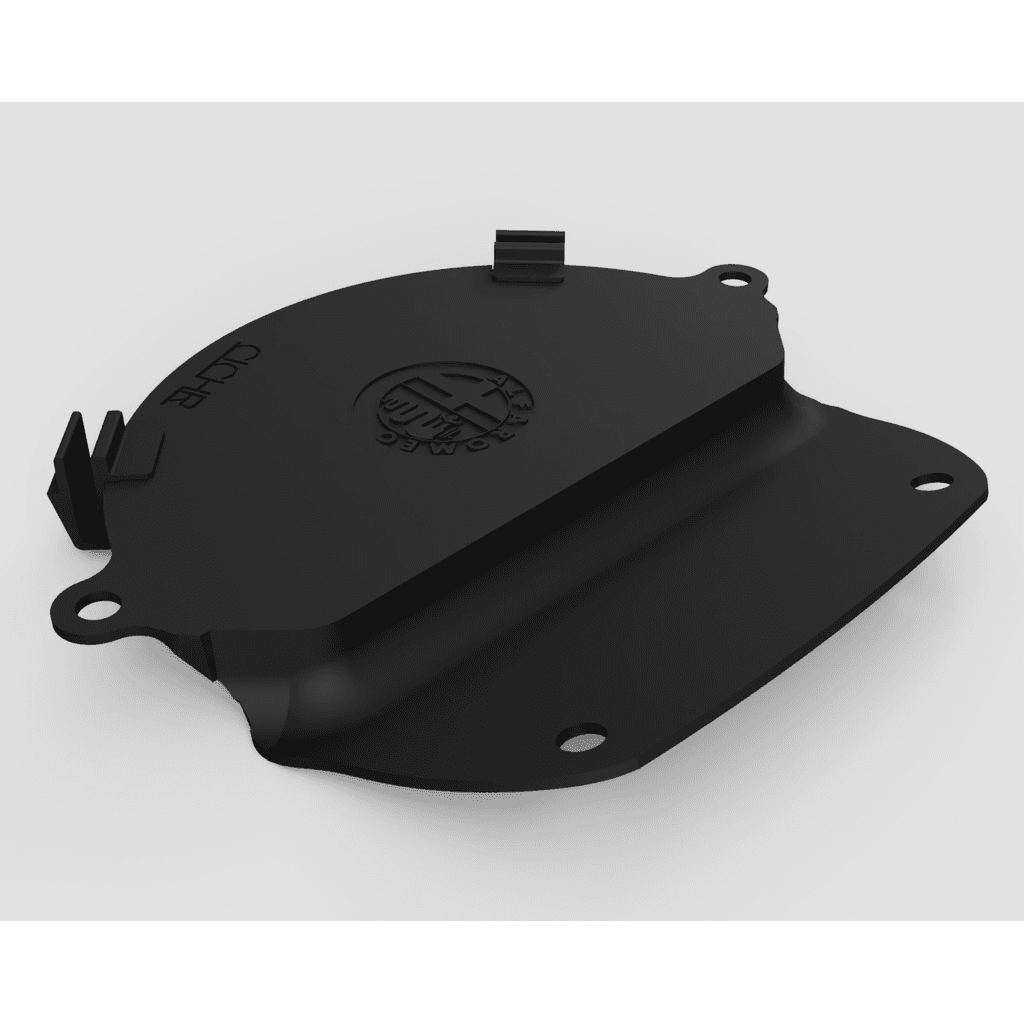

Jacking-Point Protective Cover Assembly — image 1 of 3

PLATE 01 / 03No caption recorded

File manifest

MAN-2304

[01]TLC_Clip.stlTLC_Clip.stl.STL
[02]TLC1.stlTLC1.stl.STL
[03]TLC2.stlTLC2.stl.STL
[04]Bounding box296.773 × 187.343 × 23.904 mm
[05]Volume104,992.32 mm³

Owner notes

BY CICHR

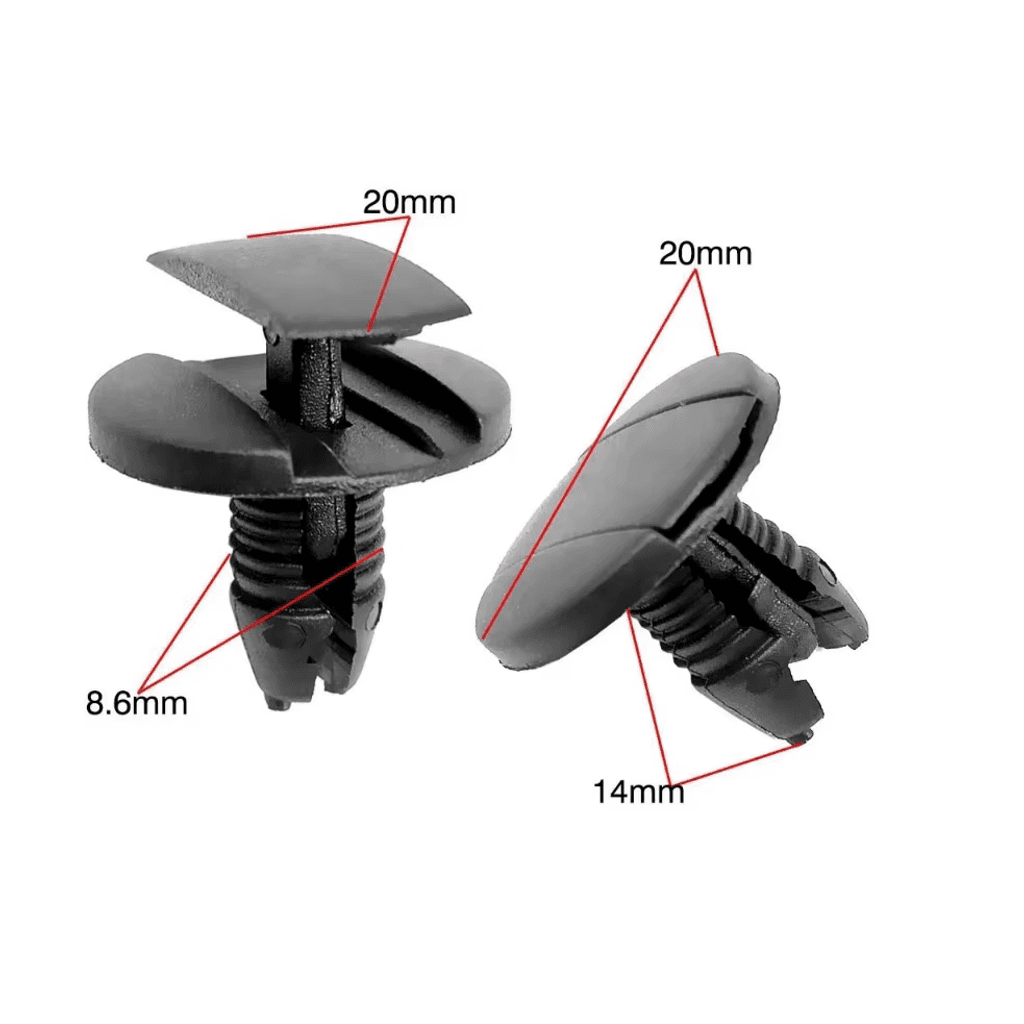

Multi-piece protective cover for the vehicle's jacking-point opening. The creator designed it as a direct replacement for a missing or damaged factory cover and states that it protects the opening from water, salt, dirt and road debris. Print TLC1, TLC2 and TLC_Clip; glue the body pieces as described and print the clip quantity needed for one cover. Reuse sound original retainers or tested automotive fixing clips. This is a protective trim cover only: remove it as required before lifting, never place a jack or stand on the print, and confirm secure retention after installation.
