Quick-Release Screw

PLA1 FILECC-BY-NCCabin trim, cargo & roof

PART RECORDREF 2203

PART: Quick-Release Screw
OEM: —
FITS: Spider Tipo 916

3D preview unavailable. Original files are available after signing in.

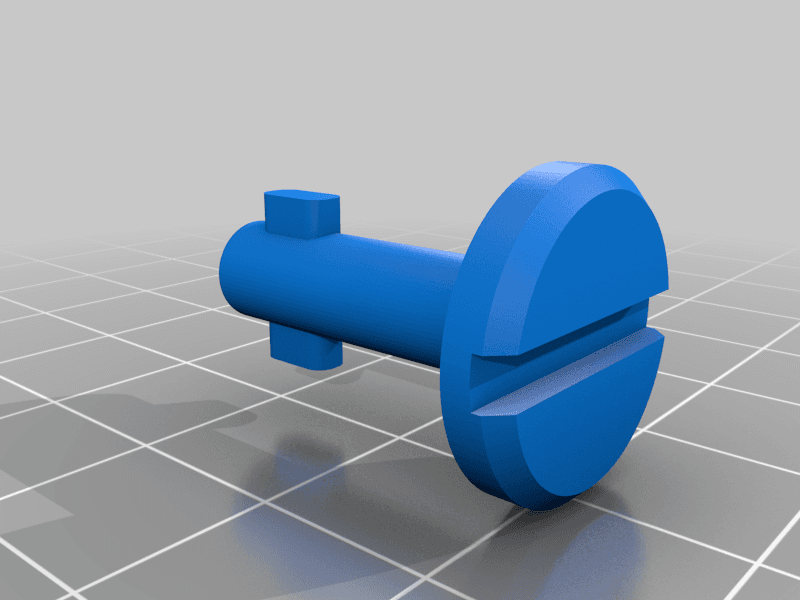

RECORD · AR / 22031 geometry fileInteractive preview

Fitment photographs

3 PLATES

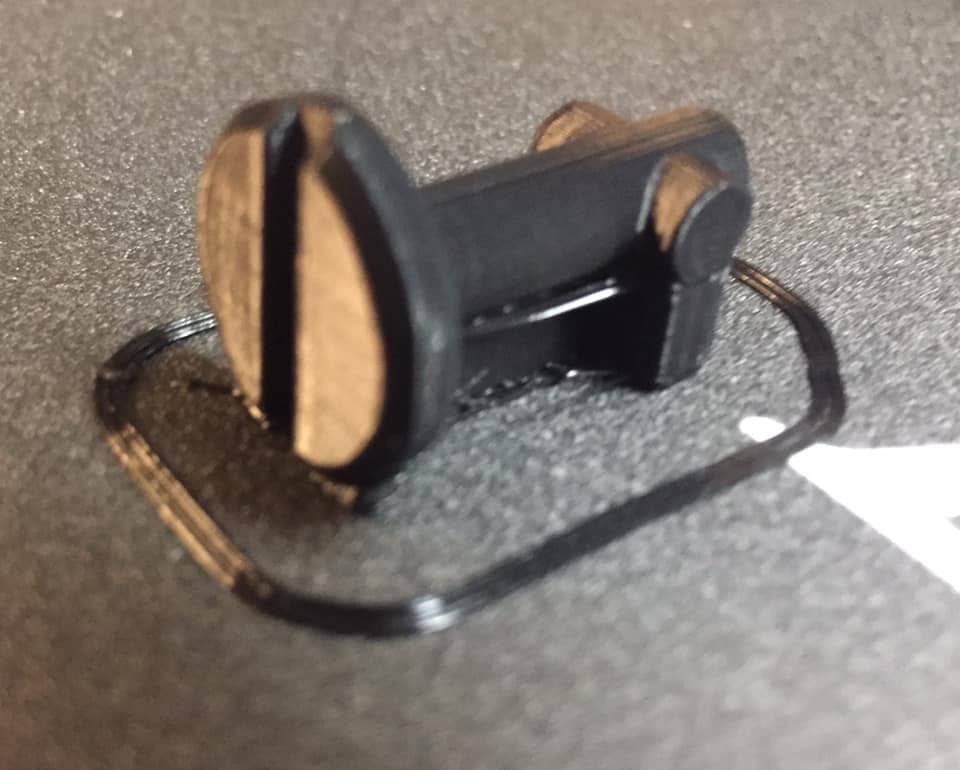

PLATE 01 / 03No caption recorded

File manifest

MAN-2203

[01]Quick_Release_Screw.stlQuick_Release_Screw.stl.STL
[02]Bounding box24.000 × 15.999 × 15.998 mm
[03]Volume1,228.991 mm³

Owner notes

BY ALEXANDER HAUSMANN (HAUSMANNAL)

Replacement quick-release screw for the Alfa Romeo Tipo 916 Spider. The creator printed it in PLA at 0.10 mm with supports and 10% infill. Compare the latch features with the original and replace it if heat, UV exposure or wear causes deformation.
