HVAC Control-Knob Set

ABS · PETGMULTI-PART2 FILESCC-BY-NCDashboard & controls

PART RECORDREF 2296

PART: HVAC Control-Knob Set
OEM: —
FITS: 4C Tipo 960

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 22962 geometry filesInteractive preview

Fitment photographs

2 PLATES

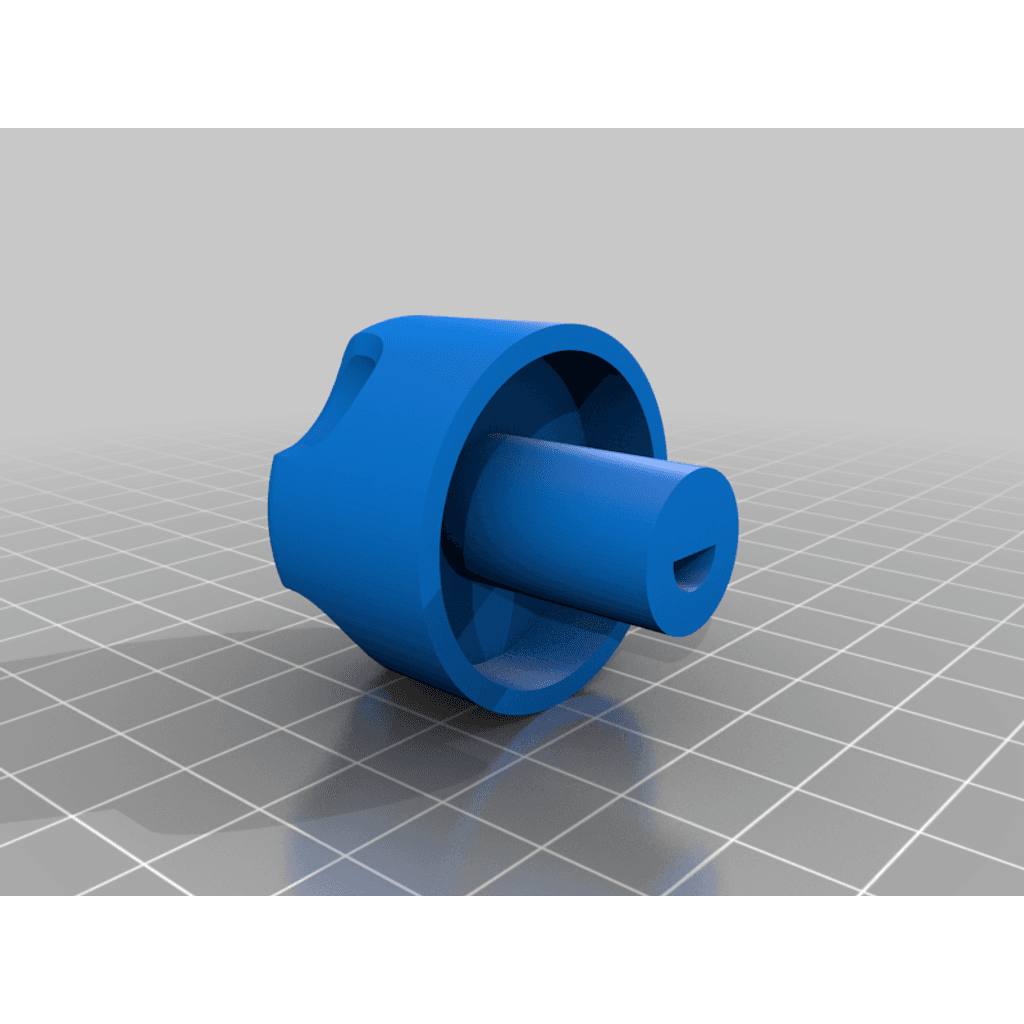

PLATE 01 / 02No caption recorded

File manifest

MAN-2296

[01]alfa_center_control_knob_plasticVersion_Aug22_2020.STLalfa_center_control_knob_plasticVersion_Aug22_2020.STL.STL
[02]alfa_control_knobPlasticVersionAug22_2020.STLalfa_control_knobPlasticVersionAug22_2020.STL.STL
[03]Bounding box81.291 × 46.300 × 38.000 mm
[04]Volume27,092.547 mm³

Owner notes

BY CDNREPRAP

Two-file replacement set for the outer and centre HVAC control knobs. Both validated STL variants are required because the centre control and outer controls use distinct geometry. The source identifies the Alfa Romeo 4C application directly but provides no year or trim split. PETG or ABS is functionally inferred for cabin heat, repeated handling and dimensional stability; compare each shaft interface before installation.

View original source ↗
