Extended Cabin-Air Intake Water Deflector

PETGMULTI-PART2 FILESCC-BY-SAWipers & washers

PART RECORDREF 2294

PART: Extended Cabin-Air Intake Water Deflector
OEM: —
FITS: MiTo Tipo 955

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 22942 geometry filesInteractive preview

Fitment photographs

3 PLATES

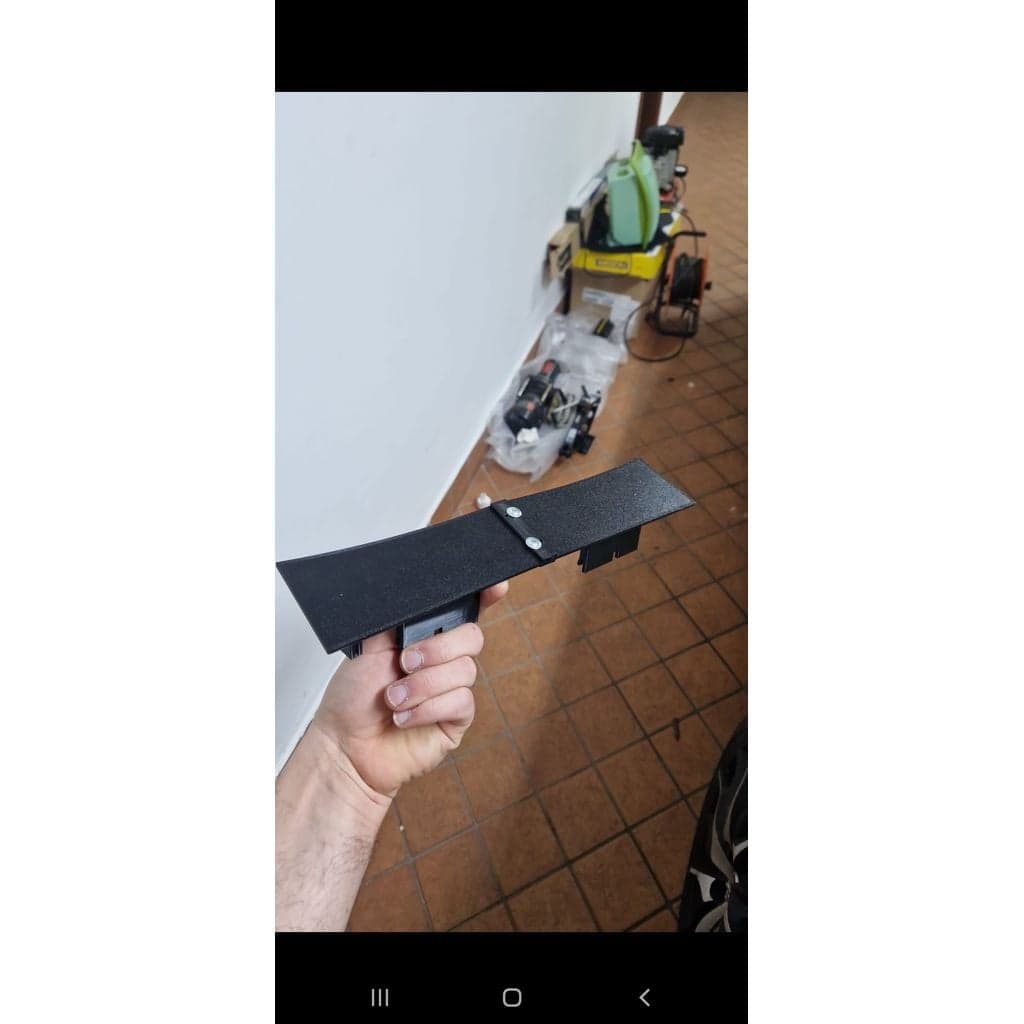

Extended Cabin-Air Intake Water Deflector — image 1 of 3

PLATE 01 / 03No caption recorded

File manifest

MAN-2294

[01]deflettore_mito.3mfdeflettore_mito.3mf.STL

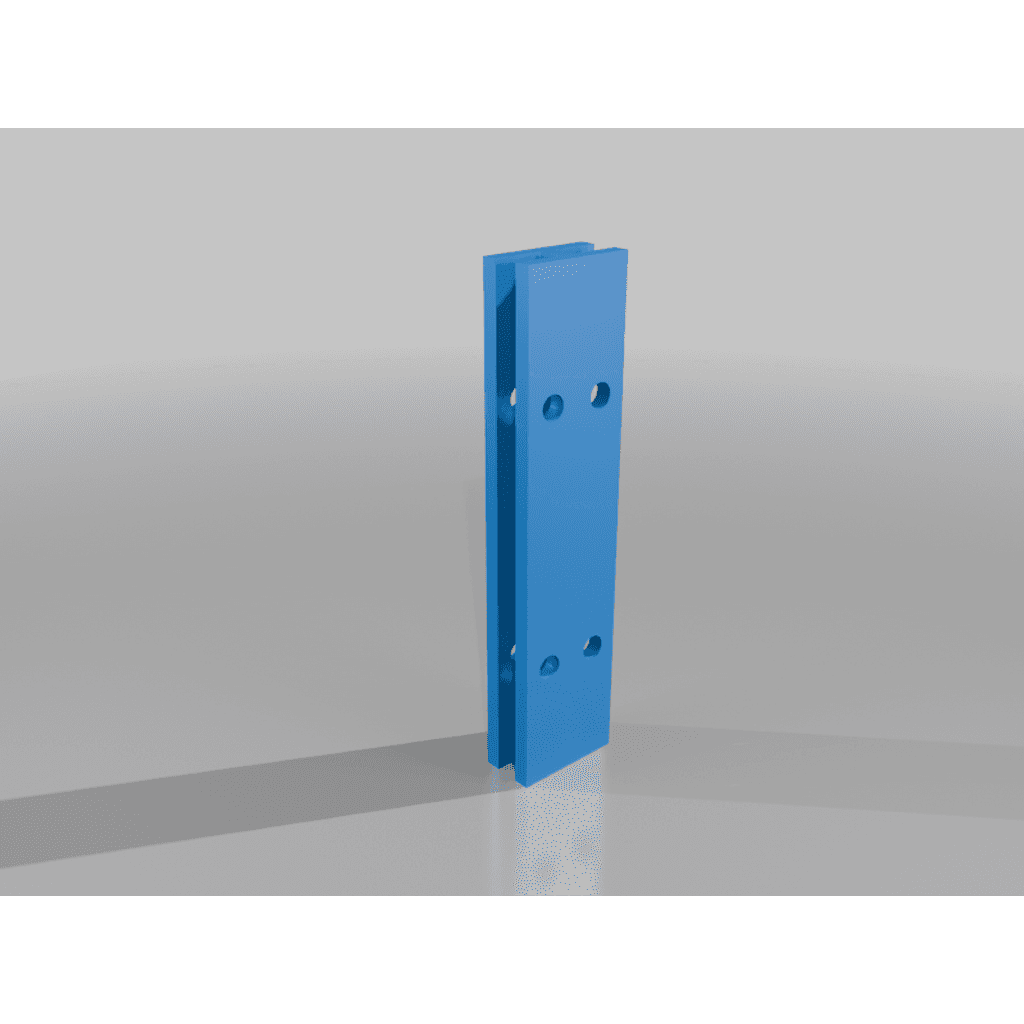

[02]flangia_deflettore_mito.3mfflangia_deflettore_mito.3mf.STL
[03]Bounding box168.781 × 161.504 × 88.000 mm
[04]Volume259,843.179 mm³

Owner notes

BY 21DANTE

Extended two-piece version of the MiTo cabin-air intake water deflector, comprising the main deflector and flange. It provides more coverage than the ancestor and retains the original warning that seams may need adhesive sealing. Both validated 3MF pieces are required. PETG follows the tested material rationale of the underlying water-deflector design.

Remixed by FIL_FPVView original source ↗
