Magnetic Fog-Lamp Aperture Air Intake

ABS · PETGMULTI-PART2 FILESCC-BY-SABody panels & exterior trim

PART RECORDREF 2290

PART: Magnetic Fog-Lamp Aperture Air Intake
OEM: —
FITS: MiTo Tipo 955

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 22902 geometry filesInteractive preview

Fitment photographs

2 PLATES

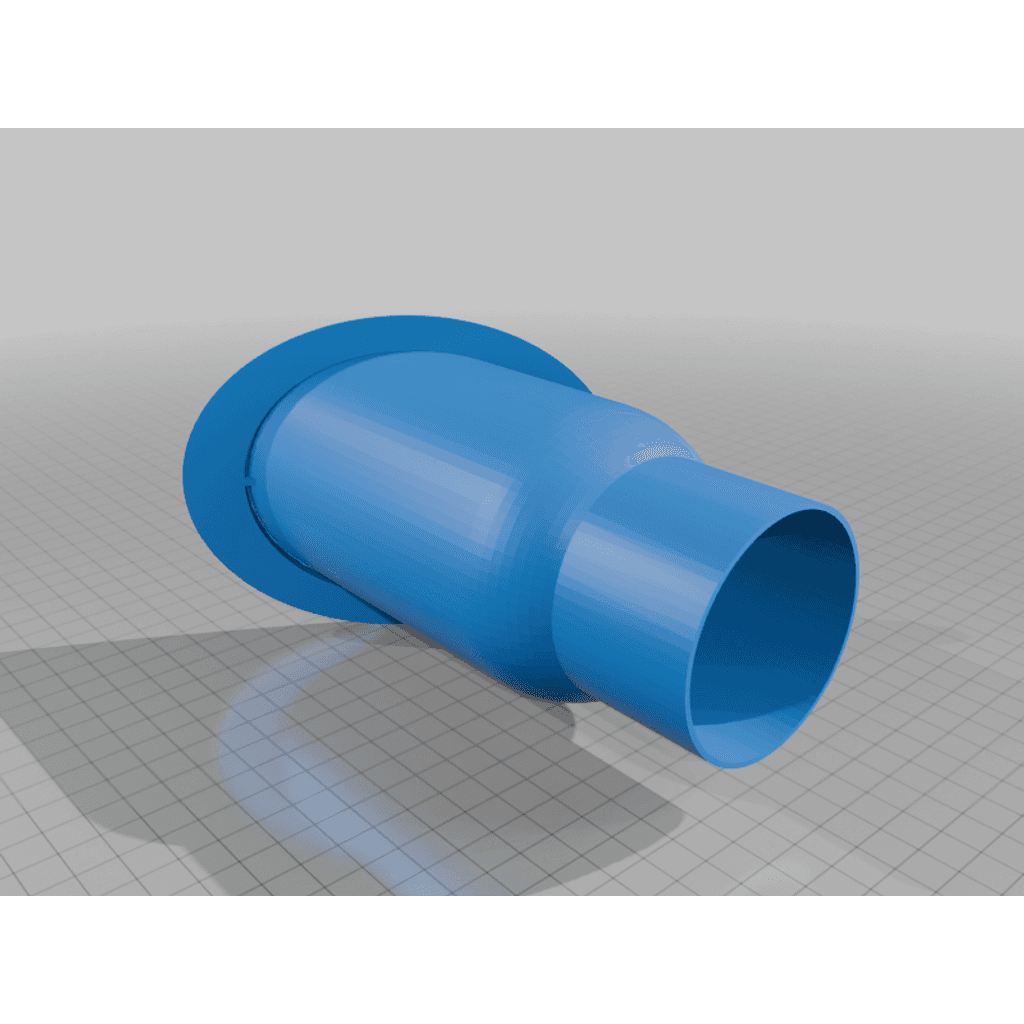

Magnetic Fog-Lamp Aperture Air Intake — image 1 of 2

PLATE 01 / 02No caption recorded

File manifest

MAN-2290

[01]Presa_daria_MiTo___piastra_v5_v6.stlPresa_daria_MiTo___piastra_v5_v6.stl.STL
[02]Presa_daria_MiTo_v4_v3.stlPresa_daria_MiTo_v4_v3.stl.STL
[03]Bounding box287.001 × 110.664 × 100.001 mm
[04]Volume152,546.448 mm³

Owner notes

BY PIPPARDO

Two-piece magnetic air-intake assembly for the MiTo fog-lamp aperture, including the base duct and magnet/screw plate. The source specifies 10 x 2 mm neodymium magnets and M2.5 cylindrical cross-head screws, and notes that CNC aluminium gives the best result although the files are printable. PETG or ABS is inferred for exterior heat and weather exposure. Removing a road lamp or routing brake/engine air may be regulated; verify local legality and safe hose routing.
