B-Pillar Seal Holder

ABS1 FILECC-BYBody panels & exterior trim

PART RECORDREF 2204

PART: B-Pillar Seal Holder
OEM: —
FITS: GTV (Tipo 916), Spider Tipo 916

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 22041 geometry fileInteractive preview

Fitment photographs

2 PLATES

PLATE 01 / 02No caption recorded

File manifest

MAN-2204

[01]B_Pillar_Seal_Holder.stlB_Pillar_Seal_Holder.stl.STL
[02]Bounding box171.600 × 9.680 × 8.859 mm
[03]Volume4,764.375 mm³

Owner notes

BY KENICHI TACHIMOTO (KTACHIMOTO)

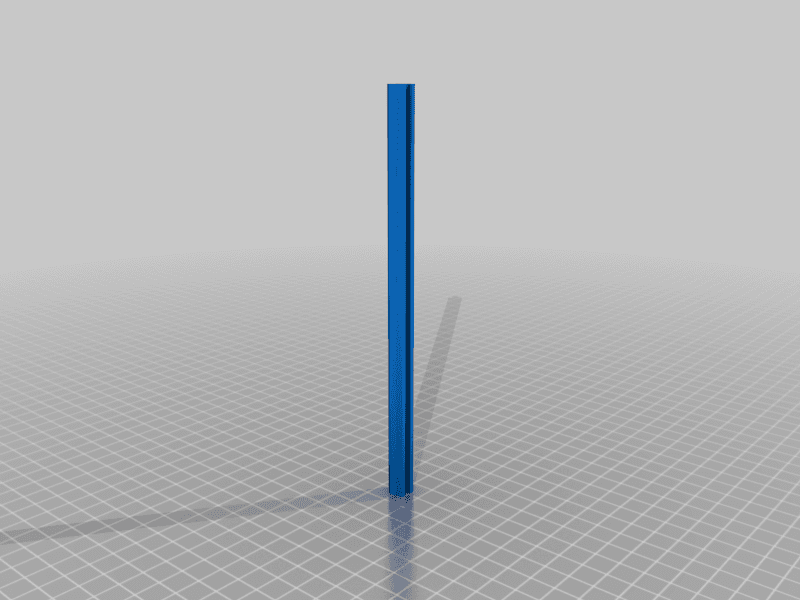

Replacement insert for the B-pillar rubber seal moulding used on Tipo 916 Spider and GTV models. The creator specifies three printed copies per seal assembly, 0.28 mm layers, no supports and 100% infill; print the source file three times and test the rubber-mould engagement before final installation.
