Battery-Terminal Box Cover

ABS1 FILECC-BY-SAEngine-bay electrical & sensors

PART RECORDREF 2267

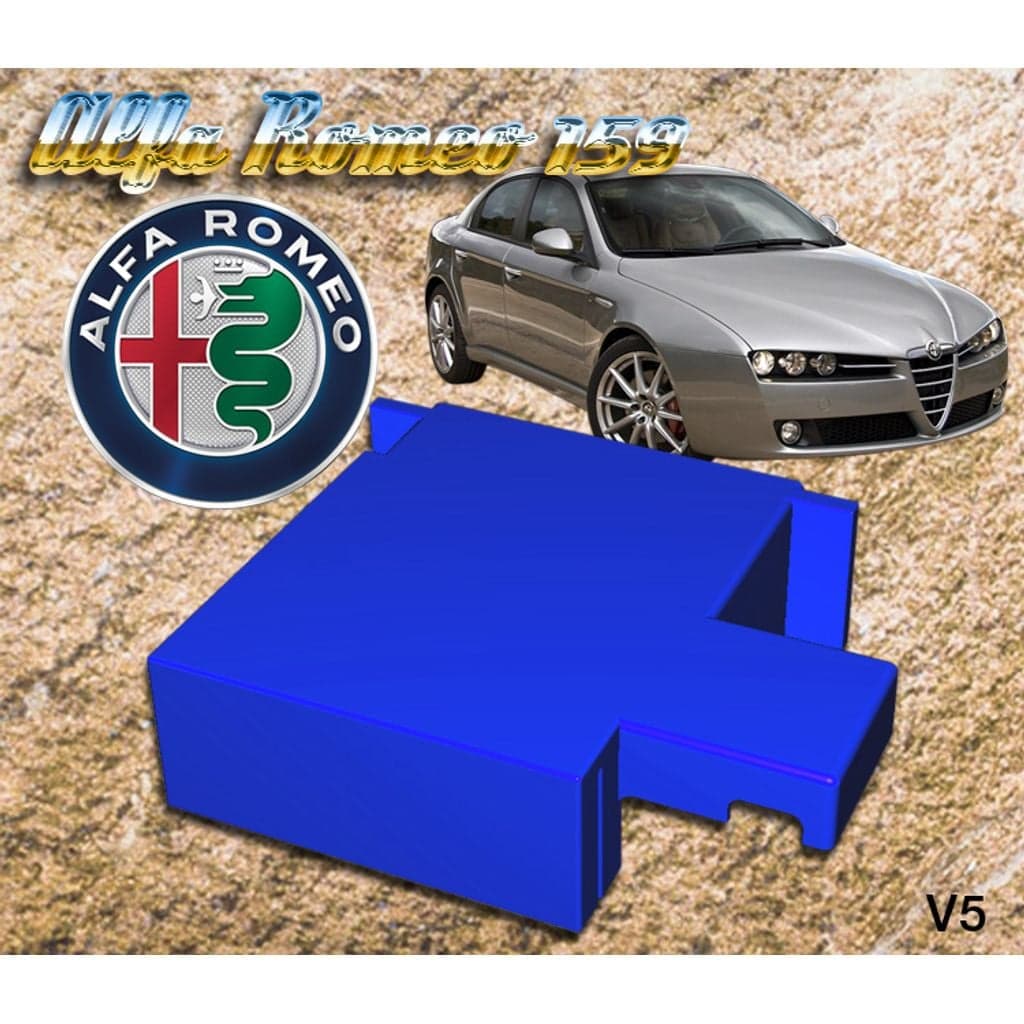

PART: Battery-Terminal Box Cover
OEM: —
FITS: 159 Tipo 939

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 22671 geometry fileInteractive preview

Fitment photographs

3 PLATES

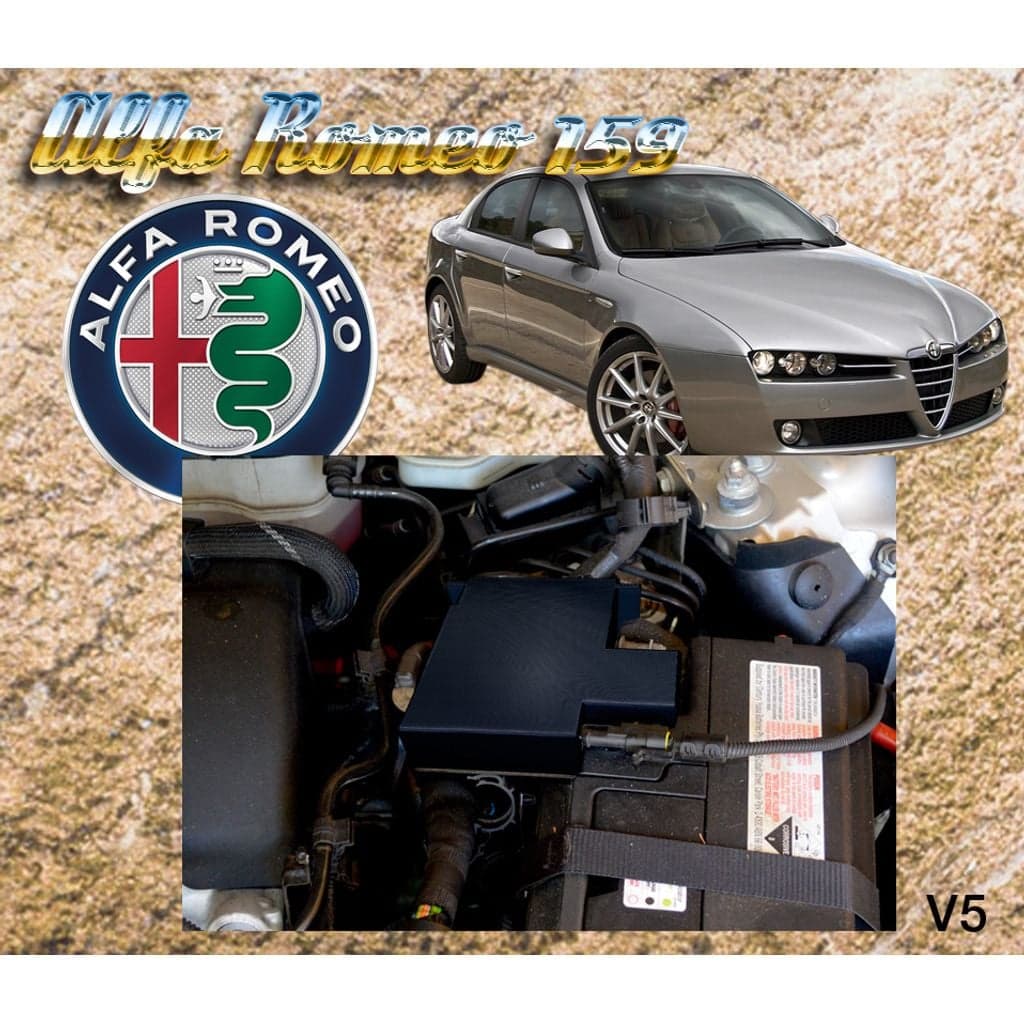

Battery-Terminal Box Cover — image 1 of 3

PLATE 01 / 03No caption recorded

File manifest

MAN-2267

[01]Alfa_Romeo_159_Fuse_Box_Cover_V6.stlAlfa_Romeo_159_Fuse_Box_Cover_V6.stl.STL
[02]Bounding box147.160 × 121.000 × 37.997 mm
[03]Volume45,668.101 mm³

Owner notes

BY JKILBYS

Replacement cover for the battery power-terminal box. Confirm cable clearance, latch engagement and electrical isolation before use. ABS is inferred for engine-bay heat and rigidity; ASA or a suitably rated engineering polymer are alternatives.

View original source ↗
