Bonnet Prop Bracket

ABS1 FILECC-BYDoors, bonnet, boot & bed hardware

PART RECORDREF 2211

PART: Bonnet Prop Bracket
OEM: —
FITS: GTV Alfetta GT / GTV / GTV6 (Tipo 116)

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 22111 geometry fileInteractive preview

Fitment photographs

7 PLATES

PLATE 01 / 07No caption recorded

File manifest

MAN-2211

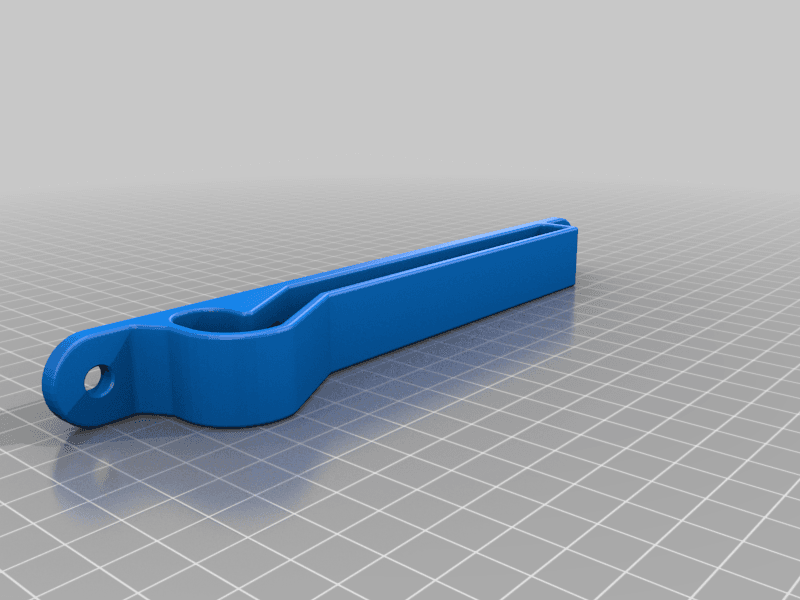

[01]Bonnet_Prop_Bracket.STLBonnet_Prop_Bracket.STL.STL
[02]Bounding box200.000 × 37.546 × 20.000 mm
[03]Volume35,766.929 mm³

Owner notes

BY PAUL GREMMEN (PAULGREMMEN)

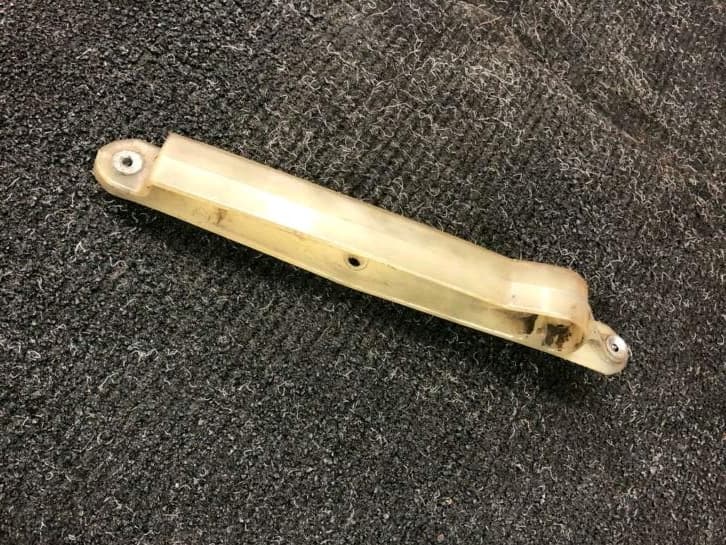

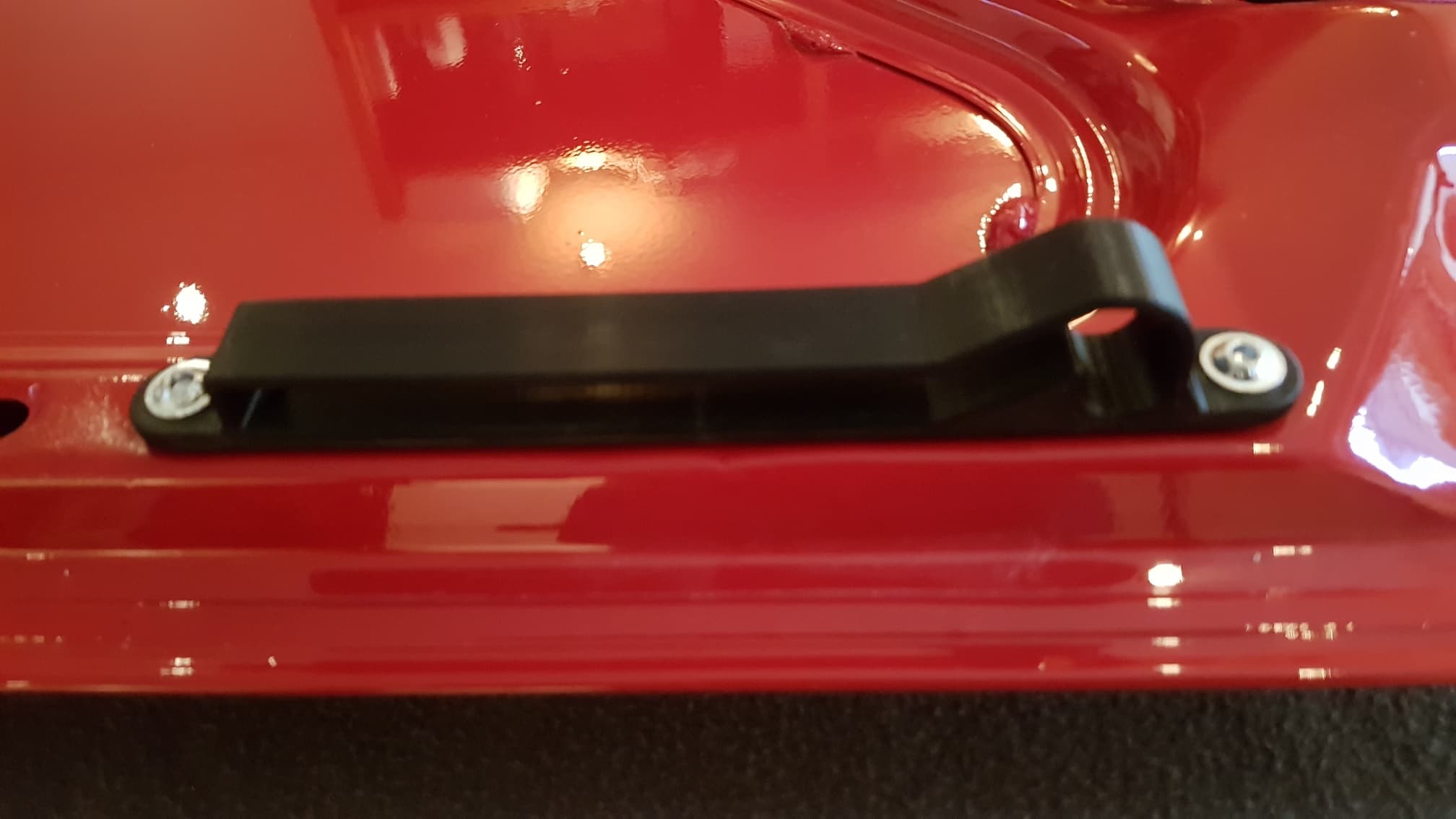

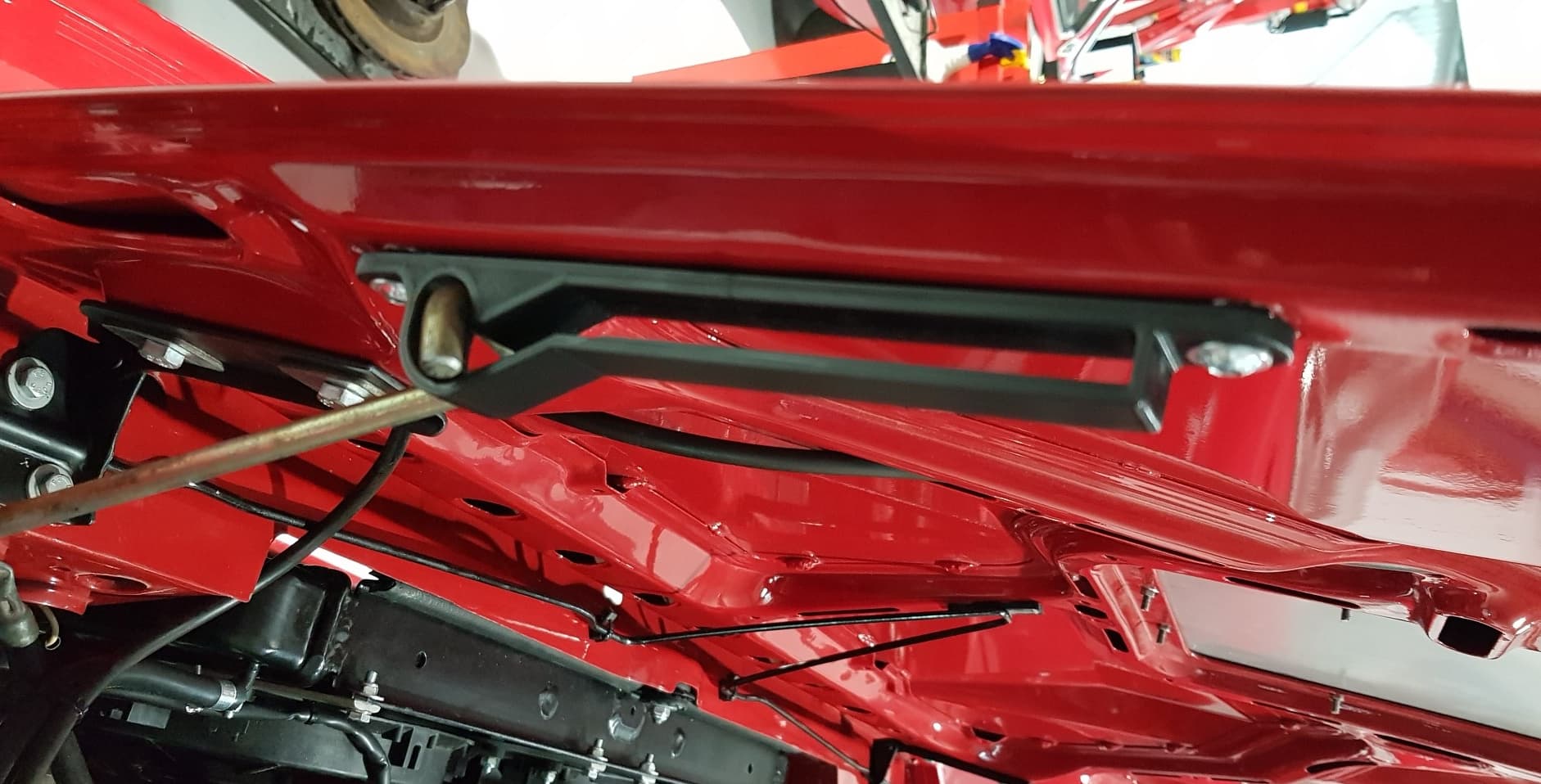

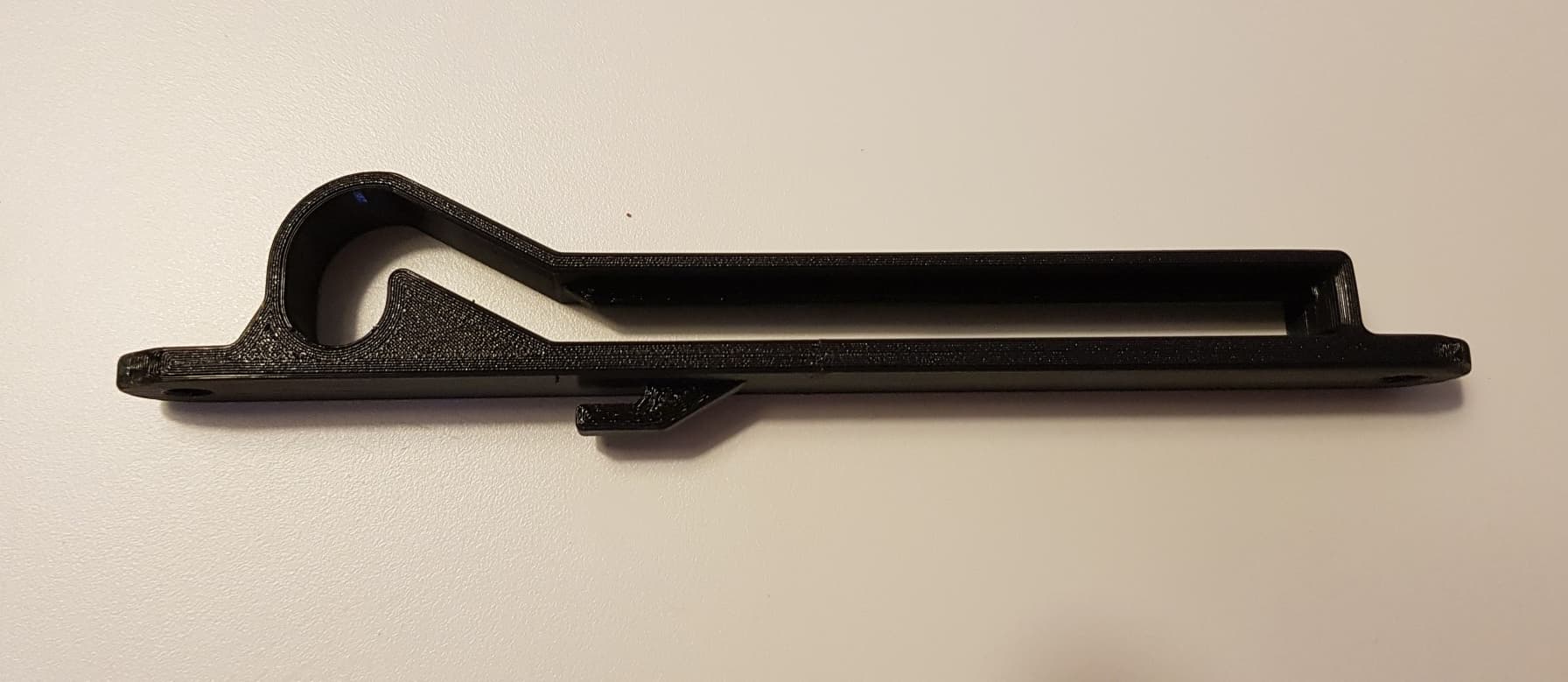

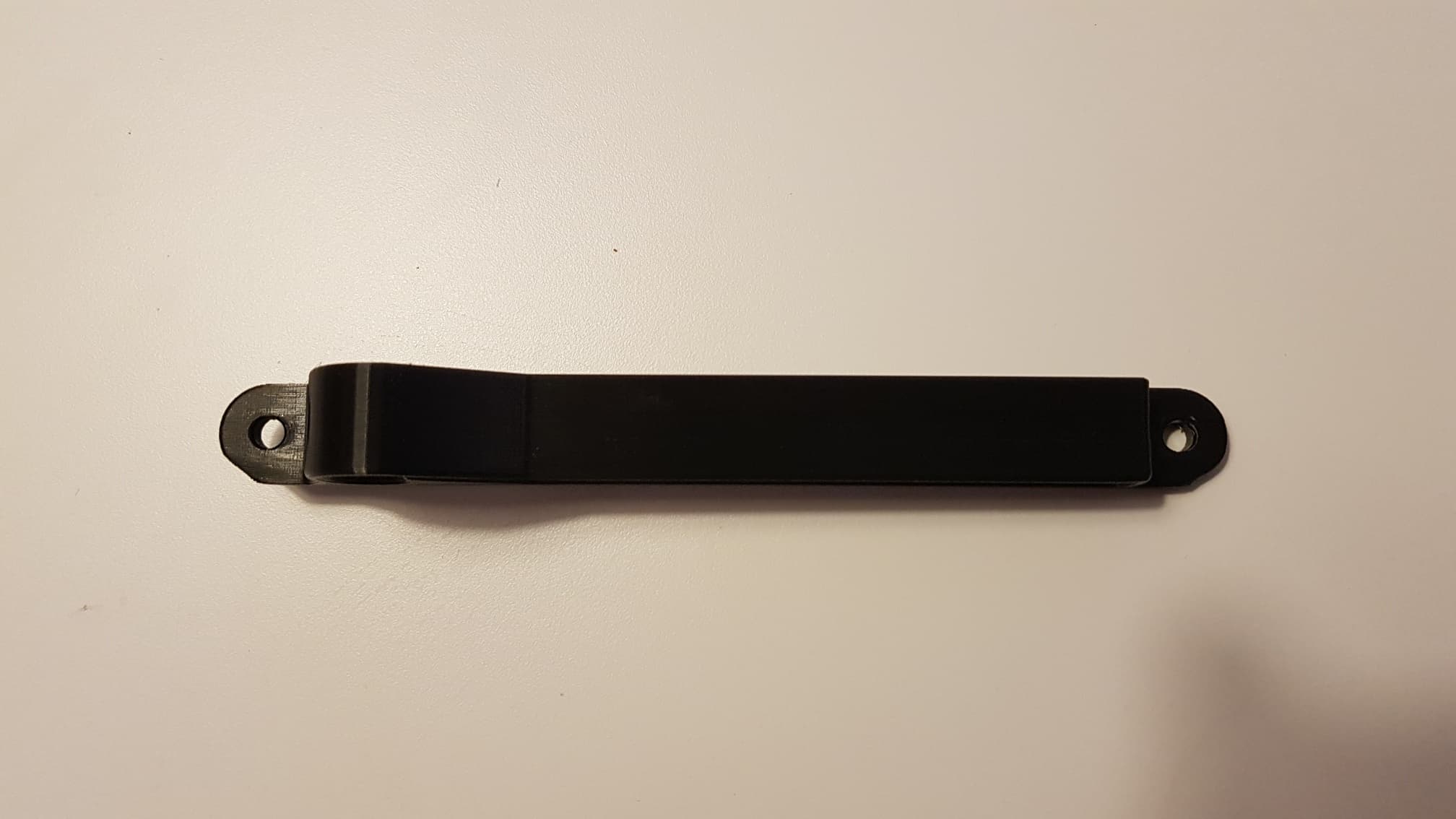

Replacement bracket for the bonnet prop on Type 116 GTV/GTV6 models. The creator printed it in ABS and installed rivet nuts in the original mounting holes so the bracket can be retained with M6 flat-head hex screws; verify mounting security before working under the bonnet.
