Climate-Control Vent Grid

ABS1 FILECC-BYDashboard & controls

PART RECORDREF 2261

PART: Climate-Control Vent Grid
OEM: —
FITS: 159 Tipo 939

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 22611 geometry fileInteractive preview

Fitment photographs

2 PLATES

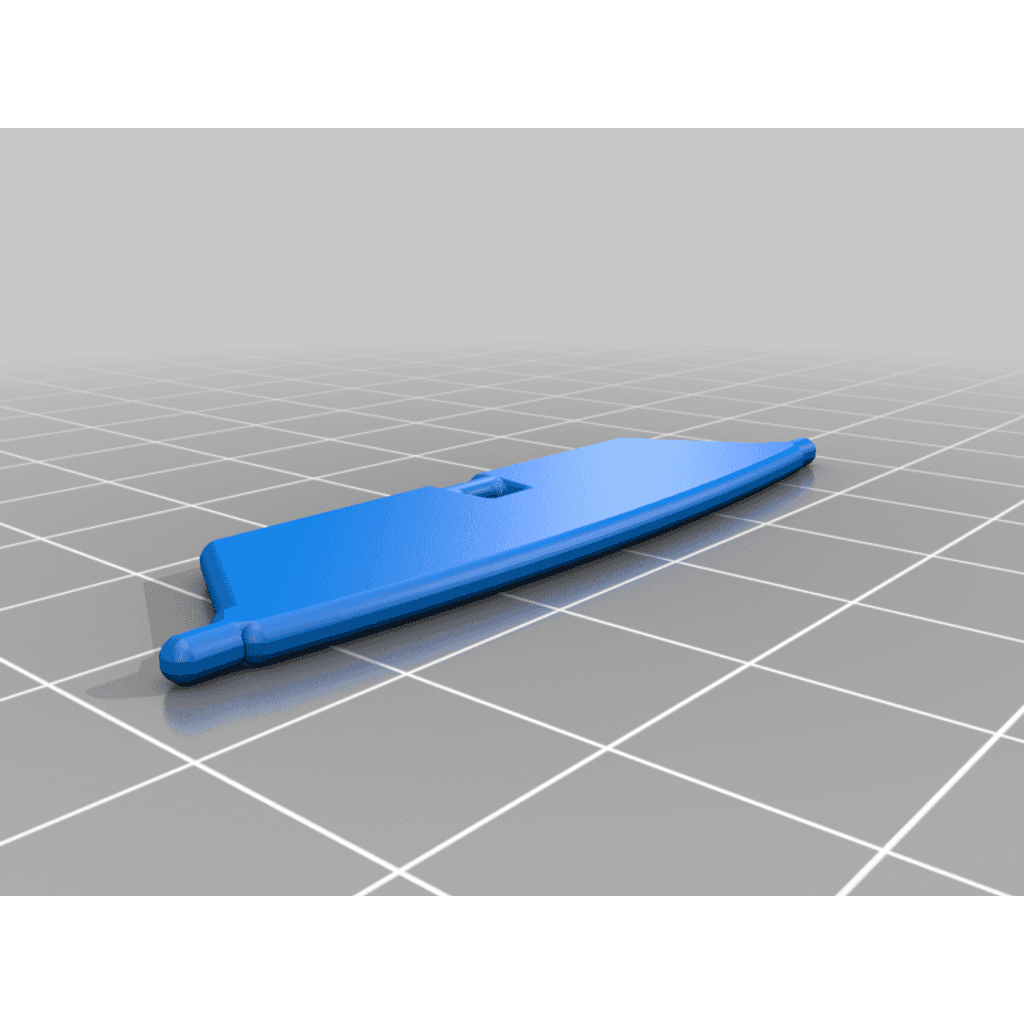

Climate-Control Vent Grid — image 1 of 2

PLATE 01 / 02No caption recorded

File manifest

MAN-2261

[01]tefo.STLtefo.STL.STL
[02]Bounding box54.000 × 13.987 × 2.000 mm
[03]Volume1,120.523 mm³

Owner notes

BY ERKANBASAK

Replacement grid component for the climate-control vent. ABS is inferred for rigid dashboard geometry and cabin heat; PETG is an alternative. Compare vane clearance and movement with the original before installation.

View original source ↗
