Headlight Alignment Cup

Nylon1 FILECC-BY-NCExterior lighting, cameras & sensors

PART RECORDREF 1877

PART: Headlight Alignment Cup
OEM: —
FITS: GTV Alfetta GT / GTV / GTV6 (Tipo 116)

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 18771 geometry fileInteractive preview

Fitment photographs

2 PLATES

PLATE 01 / 02No caption recorded

File manifest

MAN-1877

[01]HeadlightAlignmentCup.STLHeadlightAlignmentCup.STL.STL
[02]Bounding box30.000 × 24.000 × 20.000 mm
[03]Volume3,832.505 mm³

Owner notes

BY HOUSTIN LICHTENWALNER (HOUSTIN)

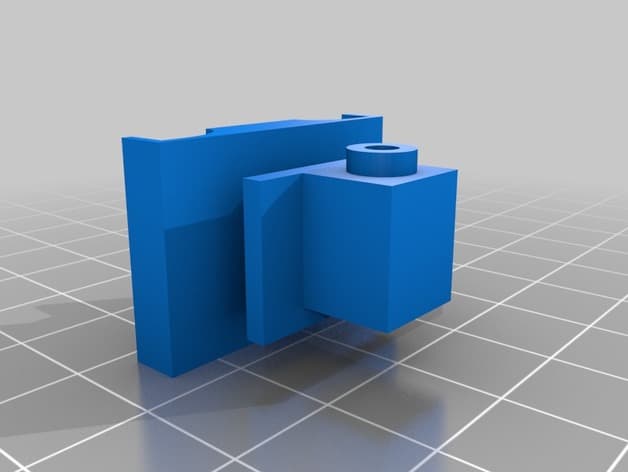

Replacement headlight alignment cup designed by Houstin Lichtenwalner for a 1985 GTV6. It works with the original screw to pull or push the headlamp during alignment. The creator reports successful versions in Taulman Bridge nylon and recommends a robust material.

View original source ↗
