Ignition-Lead Cover

ABSMULTI-PART2 FILESCC-BYEngine-bay electrical & sensors
PART RECORDREF 2224
PART
Ignition-Lead Cover
OEM
FITS
155 Tipo 167
ALFISTI-3D · PART RECORDREV 2026

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 22242 geometry filesInteractive preview
Fitment photographs
2 PLATES

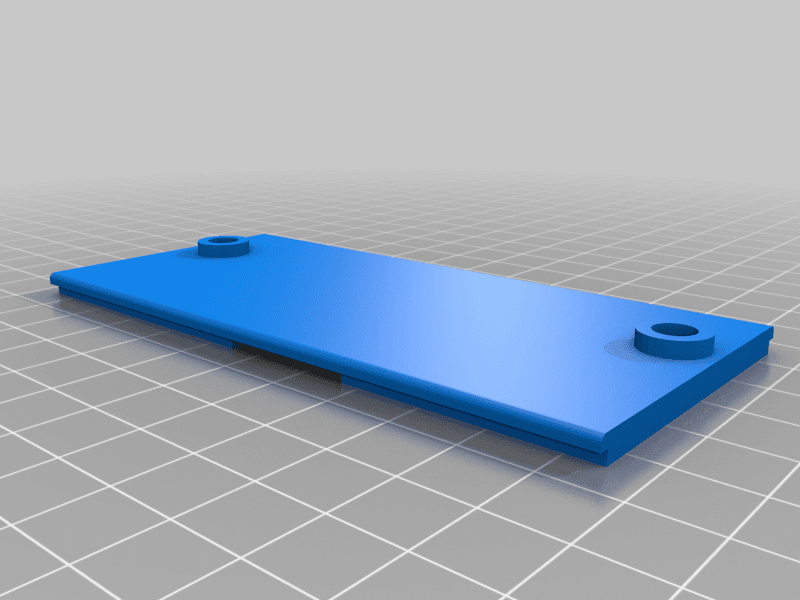

Ignition-Lead Cover — image 1 of 2
PLATE 01 / 02No caption recorded
File manifest
MAN-2224
  • [01]Ignition_Lead_Cover_Base.stl.STL
  • [02]Ignition_Lead_Cover_Plain_Top.stl.STL
  • [03]Bounding box109.000 × 52.000 × 22.000 mm
  • [04]Volume40,104.116 mm³
Owner notes
BY STEVE WEBB (PENRYAR)

Two-piece replacement cover for the high-tension ignition leads where they run toward the ignition coils on the 1992–1997 Alfa Romeo 155 Q4. The lower structure is retained by the standard large countersunk screw; the plain top cover uses two recessed M3 socket-head bolts. Do not overtighten the bolts, and verify clearance from hot and moving engine components before use.
