Jack-point air-gap fillers

ABSMULTI-PART2 FILESCC-BYSteering, suspension & brakes

PART RECORDREF 1862

PART: Jack-point air-gap fillers
OEM: —
FITS: 4C Tipo 960

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 18622 geometry filesInteractive preview

Fitment photographs

2 PLATES

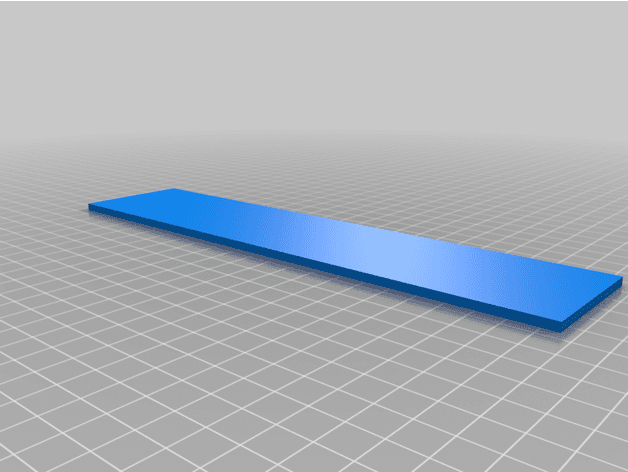

Jack-point air-gap fillers — image 1 of 2

PLATE 01 / 02No caption recorded

File manifest

MAN-1862

[01]Alfa_Romeo_4C_Jack_Gap_Fillers_2x9x.125.stlAlfa_Romeo_4C_Jack_Gap_Fillers_2x9x.125.stl.STL
[02]Alfa_Romeo_4C_Jack_Gap_Fillers_5x5x.25.stlAlfa_Romeo_4C_Jack_Gap_Fillers_5x5x.25.stl.STL
[03]Bounding box228.600 × 177.800 × 6.350 mm
[04]Volume139,290.045 mm³

Owner notes

BY TRIESTE LAPORTE (ARBELLO)

Two solid filler blocks for the jack-point air gaps. The creator printed them at 100% infill in ABS as a lower-cost alternative to 0.25-inch and 0.125-inch ABS or Delrin sheet.

View original source ↗
