OBD-II Port Relocation Panels

ABS · PETGMULTI-PART4 FILESCC-BY-NCDashboard & controls

PART RECORDREF 1893

PART: OBD-II Port Relocation Panels
OEM: —
FITS: MiTo Tipo 955

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 18934 geometry filesInteractive preview

Fitment photographs

8 PLATES

OBD-II Port Relocation Panels — image 1 of 8

PLATE 01 / 08No caption recorded

File manifest

MAN-1893

[01]OBD2Tappo.stlOBD2Tappo.stl.STL
[02]OBD2Placca.stlOBD2Placca.stl.STL
[03]InterrOBD2.stlInterrOBD2.stl.STL
[04]OBD2Placca2.stlOBD2Placca2.stl.STL
[05]Bounding box86.000 × 60.000 × 53.532 mm
[06]Volume47,296.522 mm³

Owner notes

BY MOSFETSTD

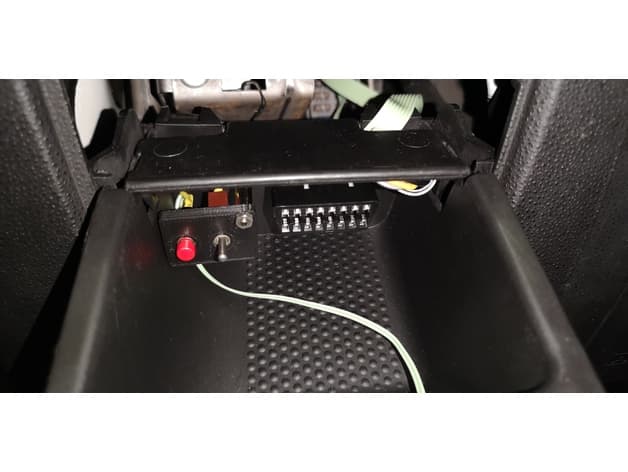

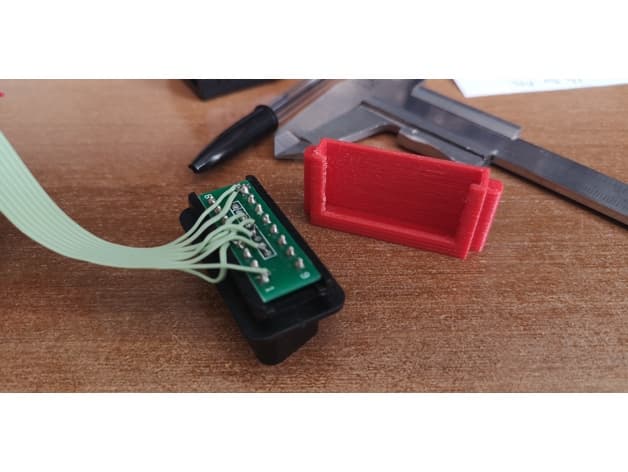

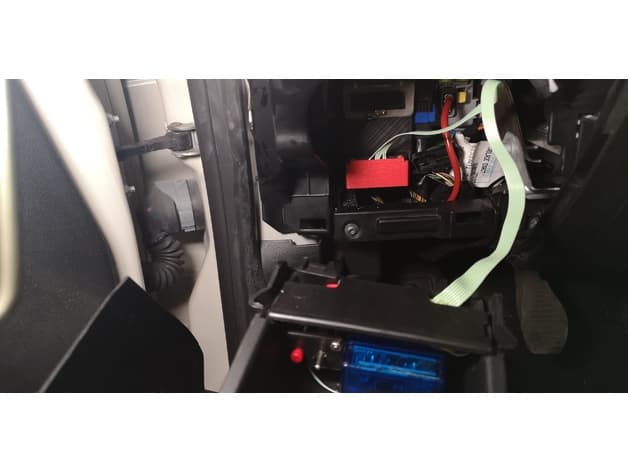

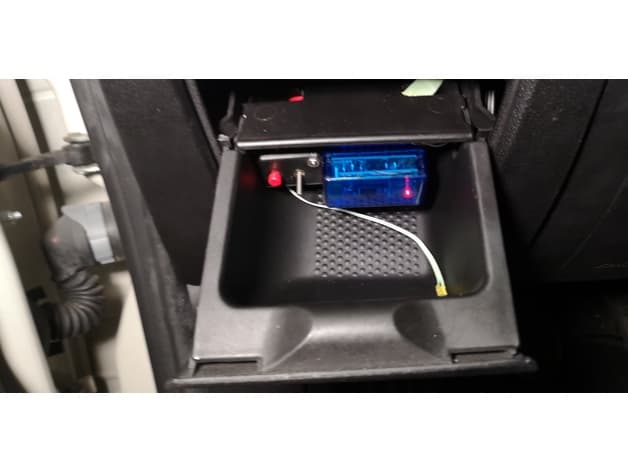

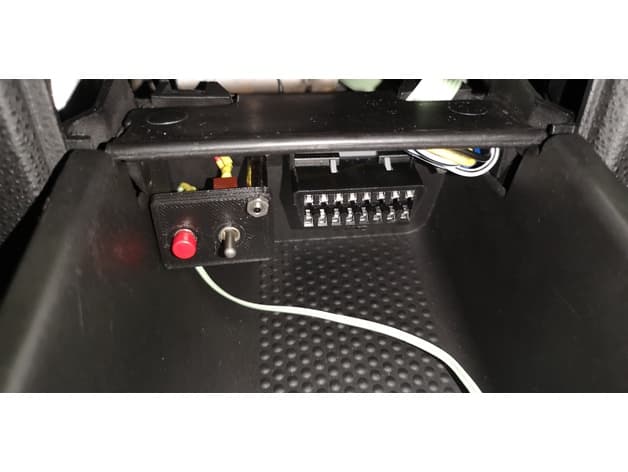

Panels, connector cap, and switch plate for relocating an OBD-II socket inside the driver-side storage compartment while allowing the compartment to close.
