Right Mirror-Cap Attachment Joint Set

ABSMULTI-PART3 FILESCC-BYMirrors

PART RECORDREF 2182

PART: Right Mirror-Cap Attachment Joint Set
OEM: —
FITS: Giulietta Tipo 940

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 21823 geometry filesInteractive preview

Fitment photographs

3 PLATES

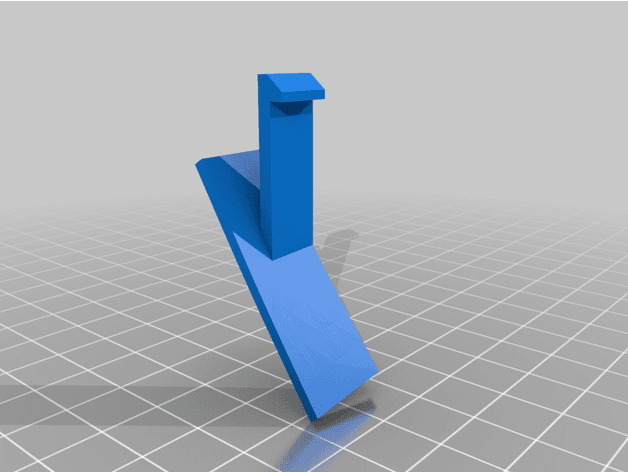

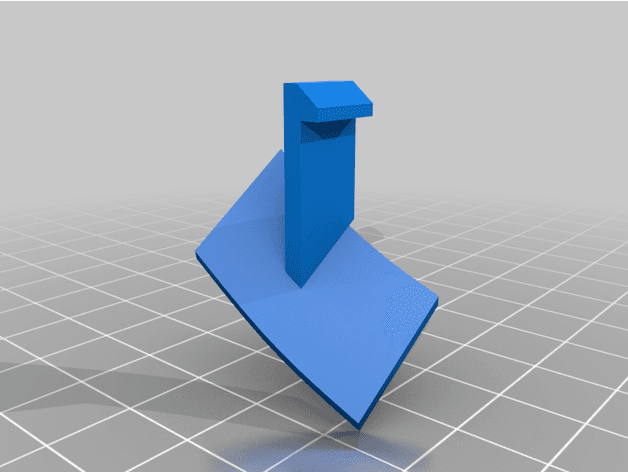

Right Mirror-Cap Attachment Joint Set — image 1 of 3

PLATE 01 / 03No caption recorded

File manifest

MAN-2182

[01]5032256-corpo31.stl5032256-corpo31.stl.STL
[02]5032256-corpo33.stl5032256-corpo33.stl.STL
[03]5032256-corpo5.stl5032256-corpo5.stl.STL
[04]Bounding box124.992 × 26.816 × 16.110 mm
[05]Volume5,206.612 mm³

Owner notes

BY LORENZO PEGORARO (PEGORENZO_)

Three attachment joints for bonding inside a right-side aftermarket mirror cap. The creator specifies Alfa Romeo Giulietta fitment and epoxy adhesive. Right side only; dry-fit every joint, prepare bonding surfaces correctly, and verify the cap remains secure.
