Short-Arm Washer-Nozzle Clip

ABS1 FILECC-BY-SAWipers & washers

PART RECORDREF 2218

PART: Short-Arm Washer-Nozzle Clip
OEM: —
FITS: GTV (Tipo 916)

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 22181 geometry fileInteractive preview

Fitment photographs

3 PLATES

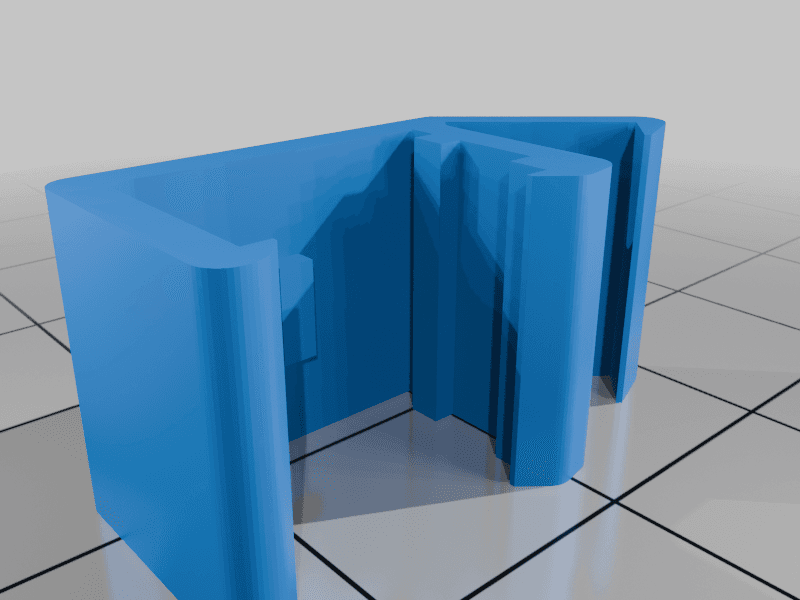

Short-Arm Washer-Nozzle Clip — image 1 of 3

PLATE 01 / 03No caption recorded

File manifest

MAN-2218

[01]Short_Arm_Washer_Nozzle_Clip.stlShort_Arm_Washer_Nozzle_Clip.stl.STL
[02]Bounding box24.038 × 12.000 × 10.908 mm
[03]Volume903.686 mm³

Owner notes

BY YVES COUDURIER (YVESCOUD)

One-millimetre shorter-arm remix of the windscreen washer-nozzle clip for a Tipo 916 GTV wiper assembly. The creator states that the original geometry did not retain the sprayer securely on their GTV and shortened the secondary arm by 1 mm; use this variant only when the source clip is loose and compare against the original before fitting.

Remixed by DjangoTemmeView original source ↗
