Two-Litre Clutch-Alignment Tool

Nylon · PETG1 FILECC-BY-NC-SAInstallation & alignment jigs

PART RECORDREF 1897

PART: Two-Litre Clutch-Alignment Tool
OEM: —
FITS: 155 Tipo 167

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 18971 geometry fileInteractive preview

Fitment photographs

2 PLATES

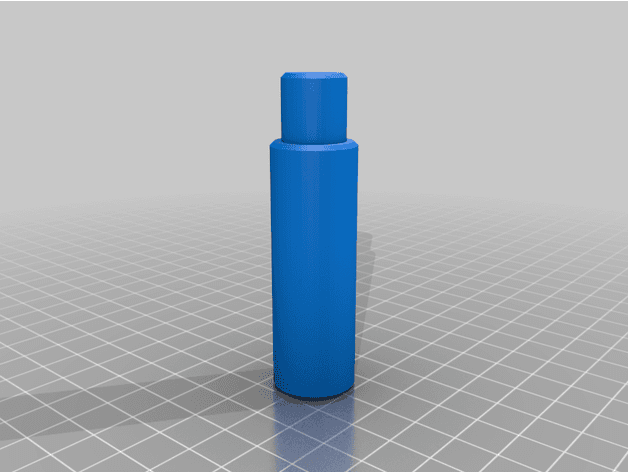

Two-Litre Clutch-Alignment Tool — image 1 of 2

PLATE 01 / 02No caption recorded

File manifest

MAN-1897

[01]Clutch_alignment_tool_for_Fiat_2L_engines.stlClutch_alignment_tool_for_Fiat_2L_engines.stl.STL
[02]Bounding box75.000 × 20.150 × 20.114 mm
[03]Volume21,589.187 mm³

Owner notes

BY BC3DS

Clutch-alignment tool for Lampredi two-litre twin-cam engines, explicitly including the 155 Q4. The creator notes that a printed tool is suitable for occasional use.
