Windscreen Washer-Hose Clips

ABS2 FILESCC-BY-SAWipers & washers

PART RECORDREF 2205

PART: Windscreen Washer-Hose Clips
OEM: —
FITS: GTV (Tipo 916), Spider Tipo 916

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 22052 geometry filesInteractive preview

Fitment photographs

3 PLATES

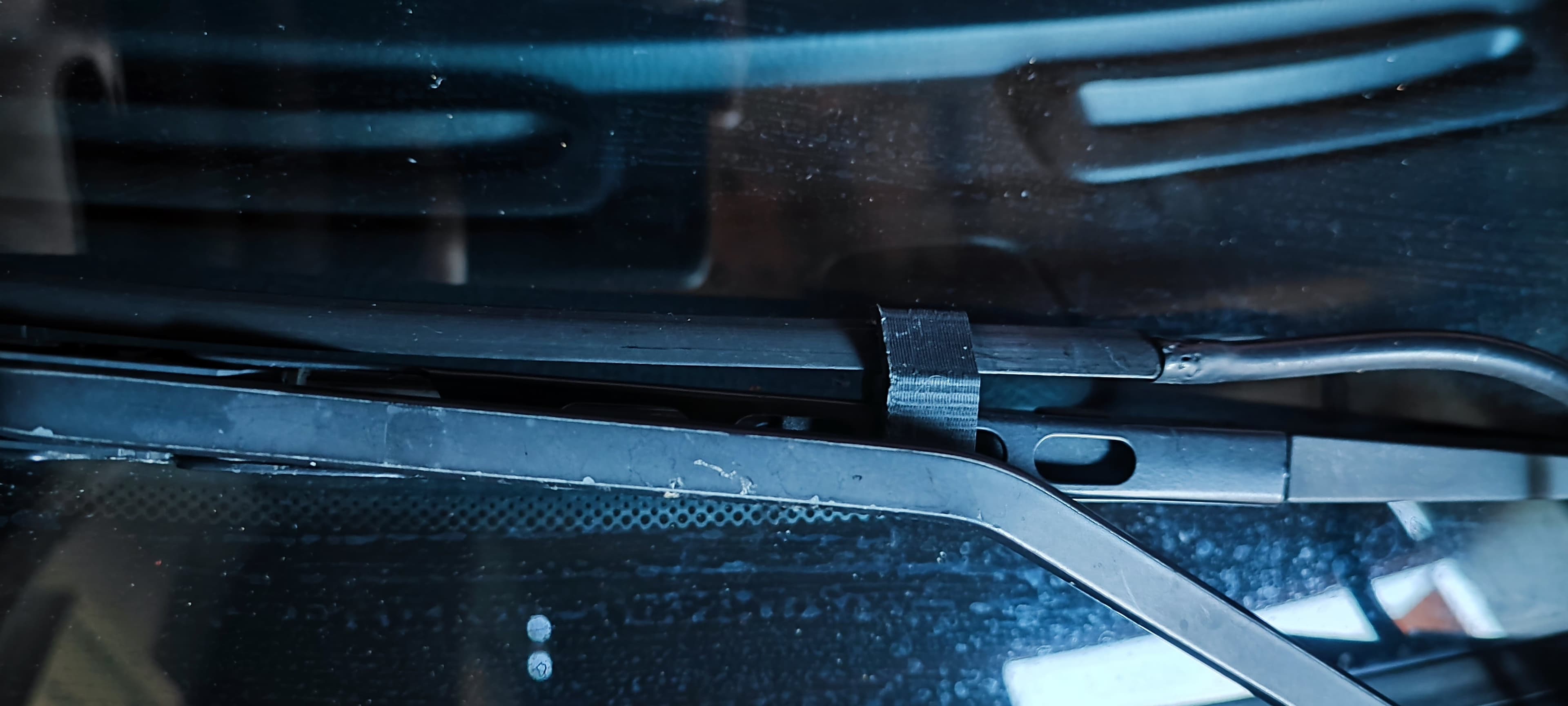

Windscreen Washer-Hose Clips — image 1 of 3

PLATE 01 / 03No caption recorded

File manifest

MAN-2205

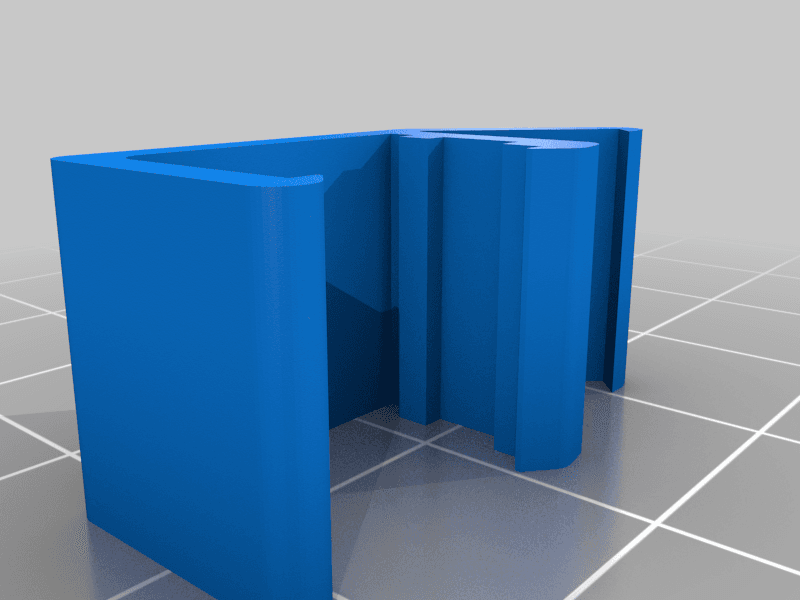

[01]Washer_Nozzle_Clip.stlWasher_Nozzle_Clip.stl.STL
[02]Washer_Hose_Clip.stlWasher_Hose_Clip.stl.STL
[03]Bounding box24.478 × 12.000 × 10.908 mm
[04]Volume902.876 mm³

Owner notes

BY YVES COUDURIER (YVESCOUD)

Two source-provided clip geometries for retaining the windscreen-washer nozzles and hose on Tipo 916 Spider and GTV wiper assemblies. Compare the original clip location and hose routing, then select the matching source variant before installation.

View original source ↗
