Windscreen Washer-Rail Clamp

ABS1 FILECC-BY-SAWipers & washers

PART RECORDREF 2216

PART: Windscreen Washer-Rail Clamp
OEM: —
FITS: GTV (Tipo 916)

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 22161 geometry fileInteractive preview

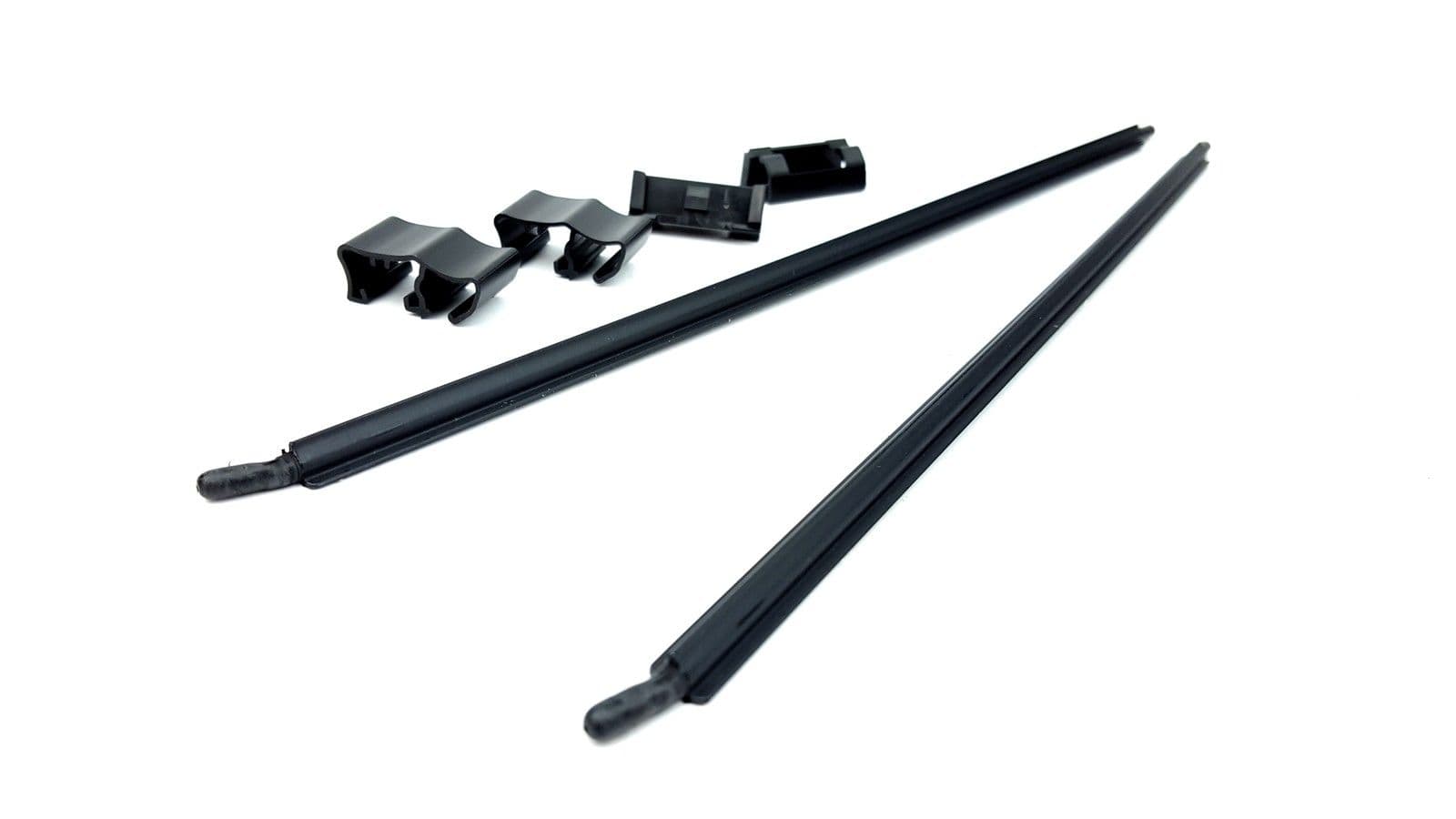

Fitment photographs

3 PLATES

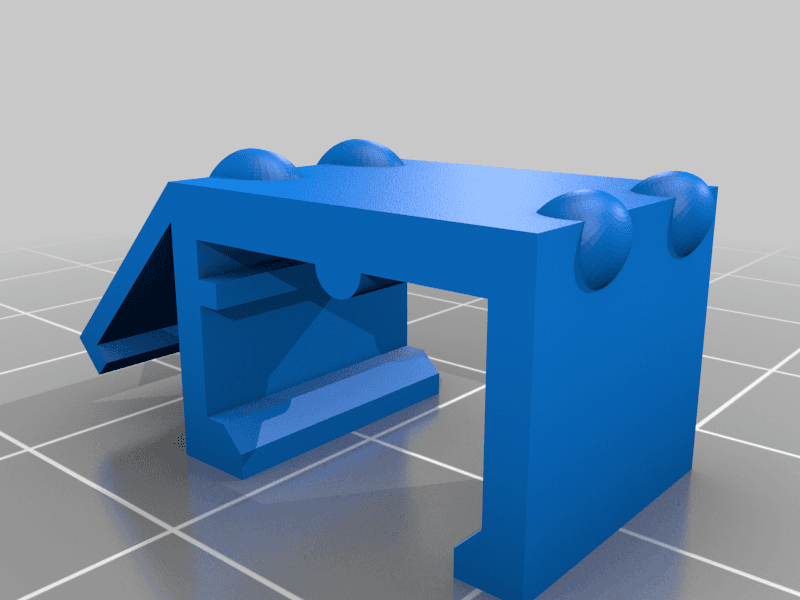

Windscreen Washer-Rail Clamp — image 1 of 3

PLATE 01 / 03No caption recorded

File manifest

MAN-2216

[01]Windscreen_Washer_Rail_Clamp.stlWindscreen_Washer_Rail_Clamp.stl.STL
[02]Bounding box24.401 × 12.031 × 12.000 mm
[03]Volume963.709 mm³

Owner notes

BY WHISKY4

Replacement clamp for securing the triangular washer pipe to the windscreen-wiper assembly. The creator printed and test-fitted it on a Tipo 916 GTV 2.0 V6 and recommends ABS for resistance to sun and weather; compare the original clamp and hose routing before installation.

View original source ↗
