Windscreen-Washer Reservoir Spout and Cap

PETGMULTI-PART2 FILESCC-BYWipers & washers

PART RECORDREF 1873

PART: Windscreen-Washer Reservoir Spout and Cap
OEM: —
FITS: 147 Tipo 937

3D preview unavailable. Original files are available after signing in.

RECORD · AR / 18732 geometry filesInteractive preview

Fitment photographs

8 PLATES

Windscreen-Washer Reservoir Spout and Cap — image 1 of 8

PLATE 01 / 08No caption recorded

File manifest

MAN-1873

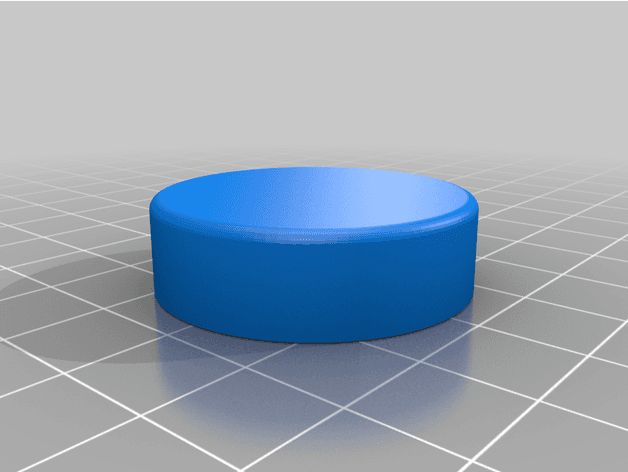

[01]Cap.stlCap.stl.STL

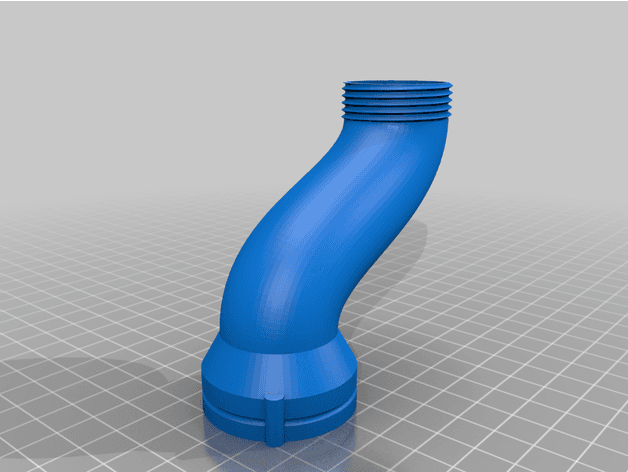

[02]Spout.stlSpout.stl.STL
[03]Bounding box85.745 × 80.000 × 49.905 mm
[04]Volume12,584.851 mm³

Owner notes

BY GIUSEPPE PORTELLI (GPORTELLI)

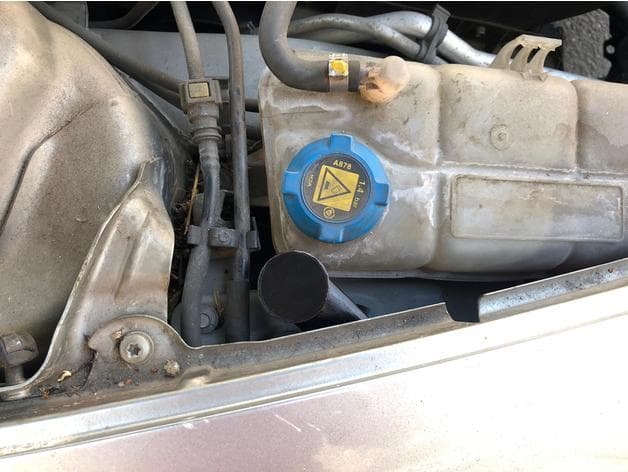

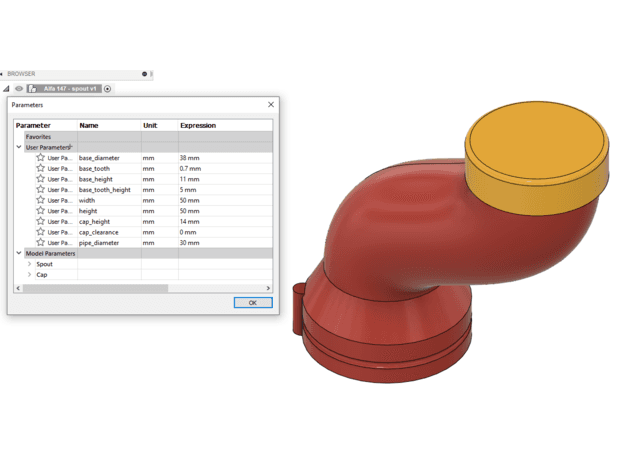

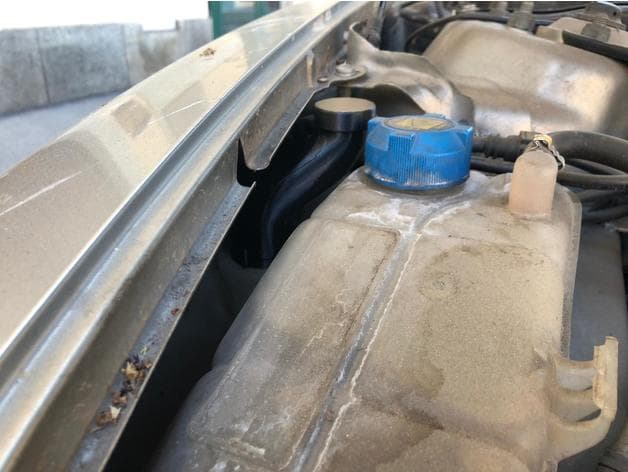

Two-piece replacement filler spout and cap designed by Giuseppe Portelli for the windscreen-washer reservoir of a 147. The creator printed it in PETG, glued the spout to the tank with cyanoacrylate, and provides an editable Fusion 360 source for tuning the attachment diameter.
