Alfa Romeo GTV

Replacement 50 mm center cap for alloy wheels using OEM 60652886. The source recommends printing solid PETG because its PLA retaining clips broke, and the photographed part accepts a separate 50 mm emblem. Confirm the wheel opening and original cap diameter before installation. The single-cap STL is supplied; the optional four-cap print plate and editable SketchUp source remain preserved in the audit archive.

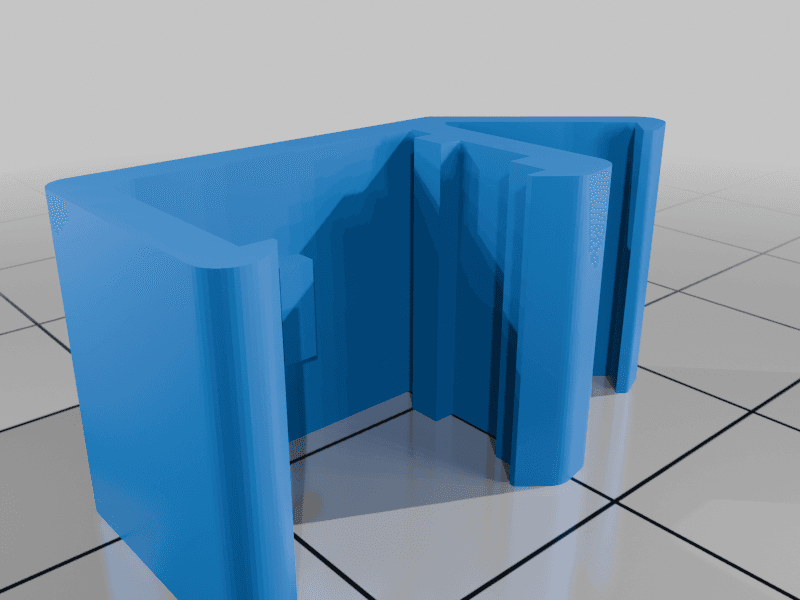

One-millimetre shorter-arm remix of the windscreen washer-nozzle clip for a Tipo 916 GTV wiper assembly. The creator states that the original geometry did not retain the sprayer securely on their GTV and shortened the secondary arm by 1 mm; use this variant only when the source clip is loose and compare against the original before fitting.

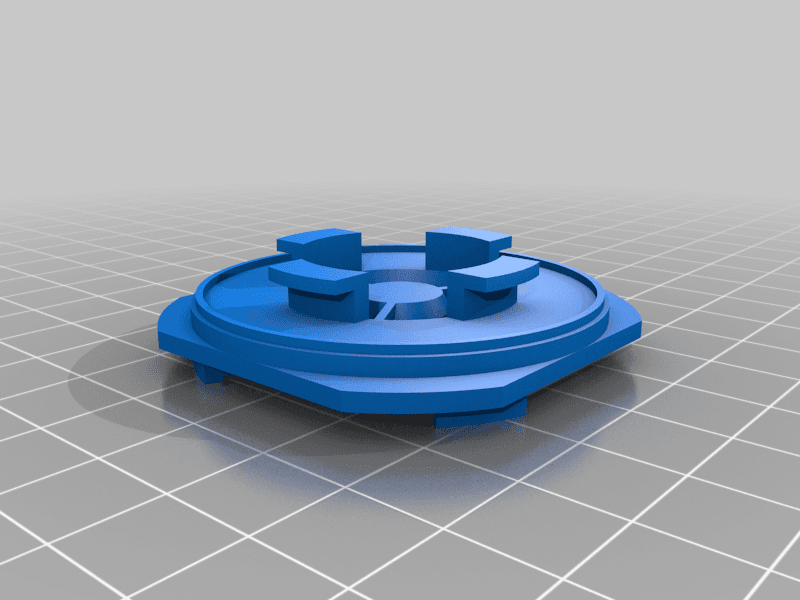

Replacement support bracket for the door tweeter on the Alfa Romeo Tipo 916 GTV. The creator designed it to replace the original bracket that commonly breaks with age; verify the speaker and door-trim attachment points before installation.

Replacement clamp for securing the triangular washer pipe to the windscreen-wiper assembly. The creator printed and test-fitted it on a Tipo 916 GTV 2.0 V6 and recommends ABS for resistance to sun and weather; compare the original clamp and hose routing before installation.

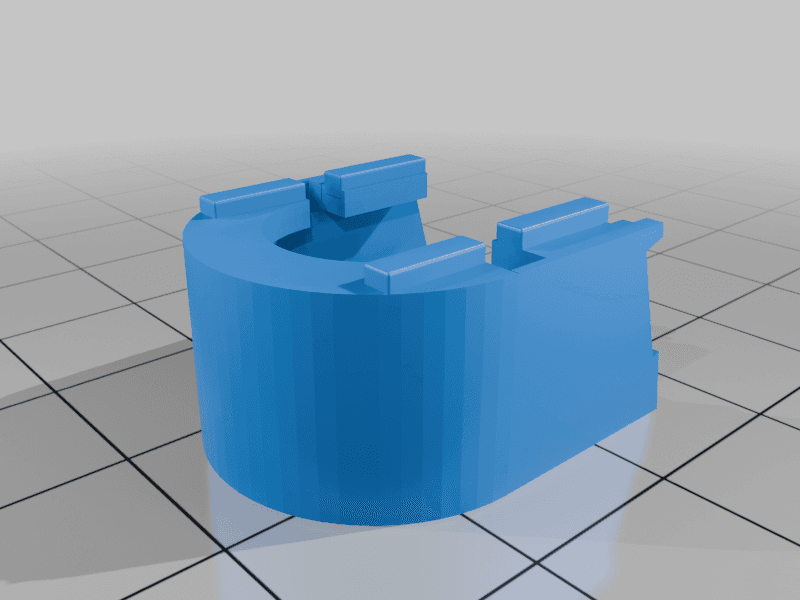

Protective cover for the windscreen-wiper arm retaining nut on a Type 116 GTV6. Confirm nut clearance and secure engagement before driving.

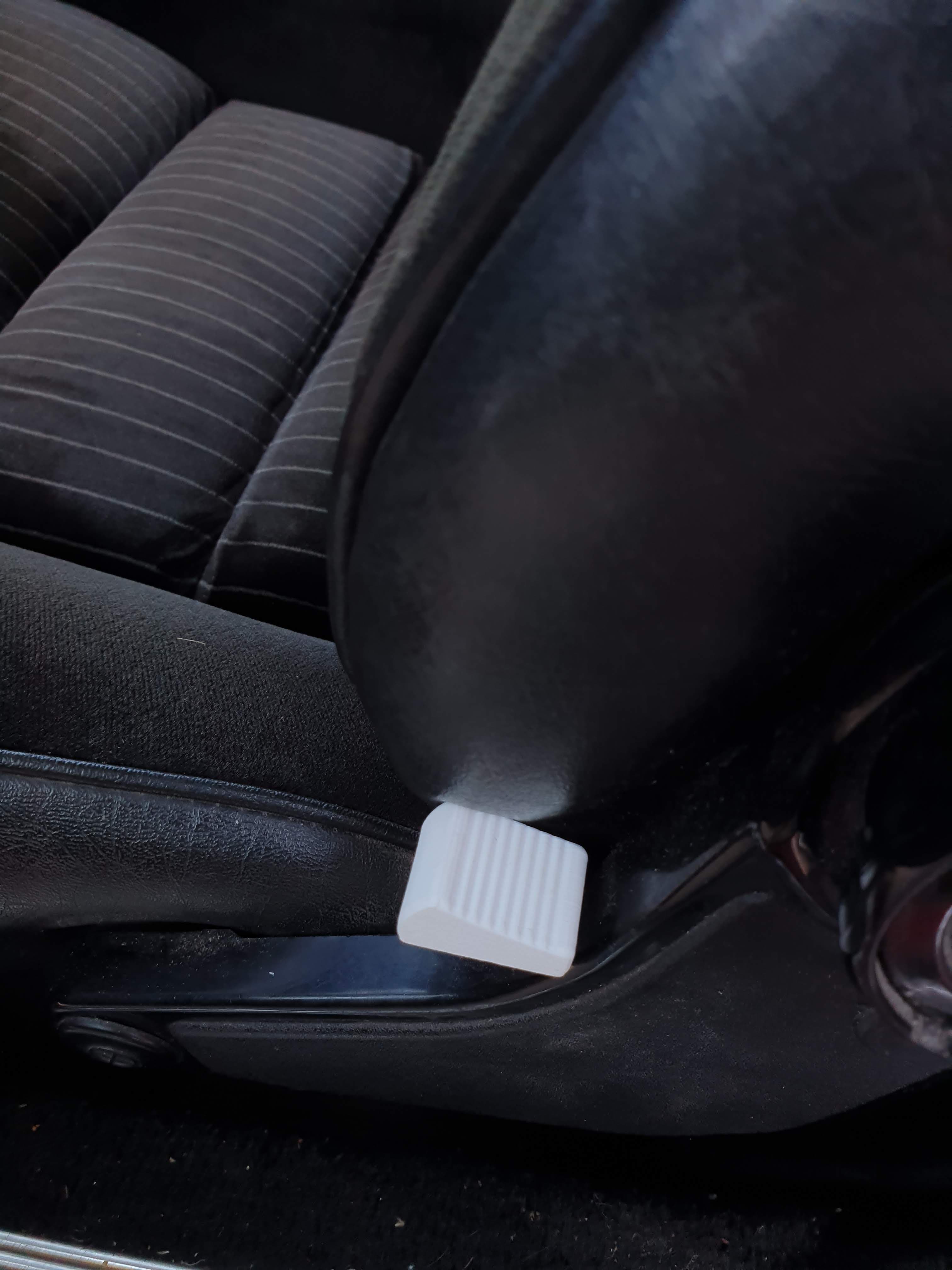

Replacement seat-adjustment grip for Type 116 GTV interiors. Test the bore and lever engagement by hand before applying adjustment force; the creator's possible GTV6/75/Milano compatibility is not treated as confirmed fitment.

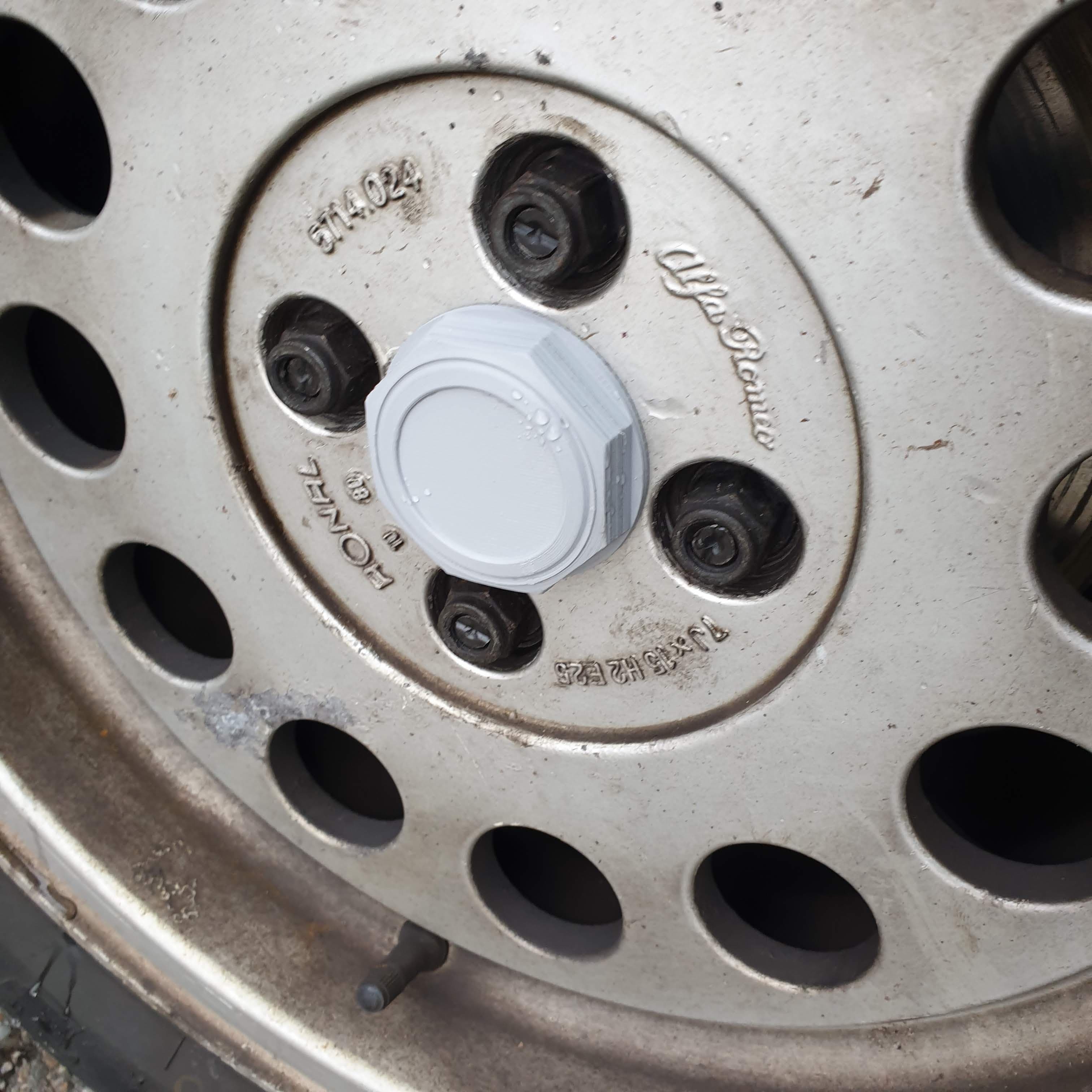

Replacement center cap for a 4×98 Ronal A1 wheel used on Type 116 GTV models. Confirm the wheel model, center-bore dimensions and retention fit before road use; the included STL is the directly printable source variant.

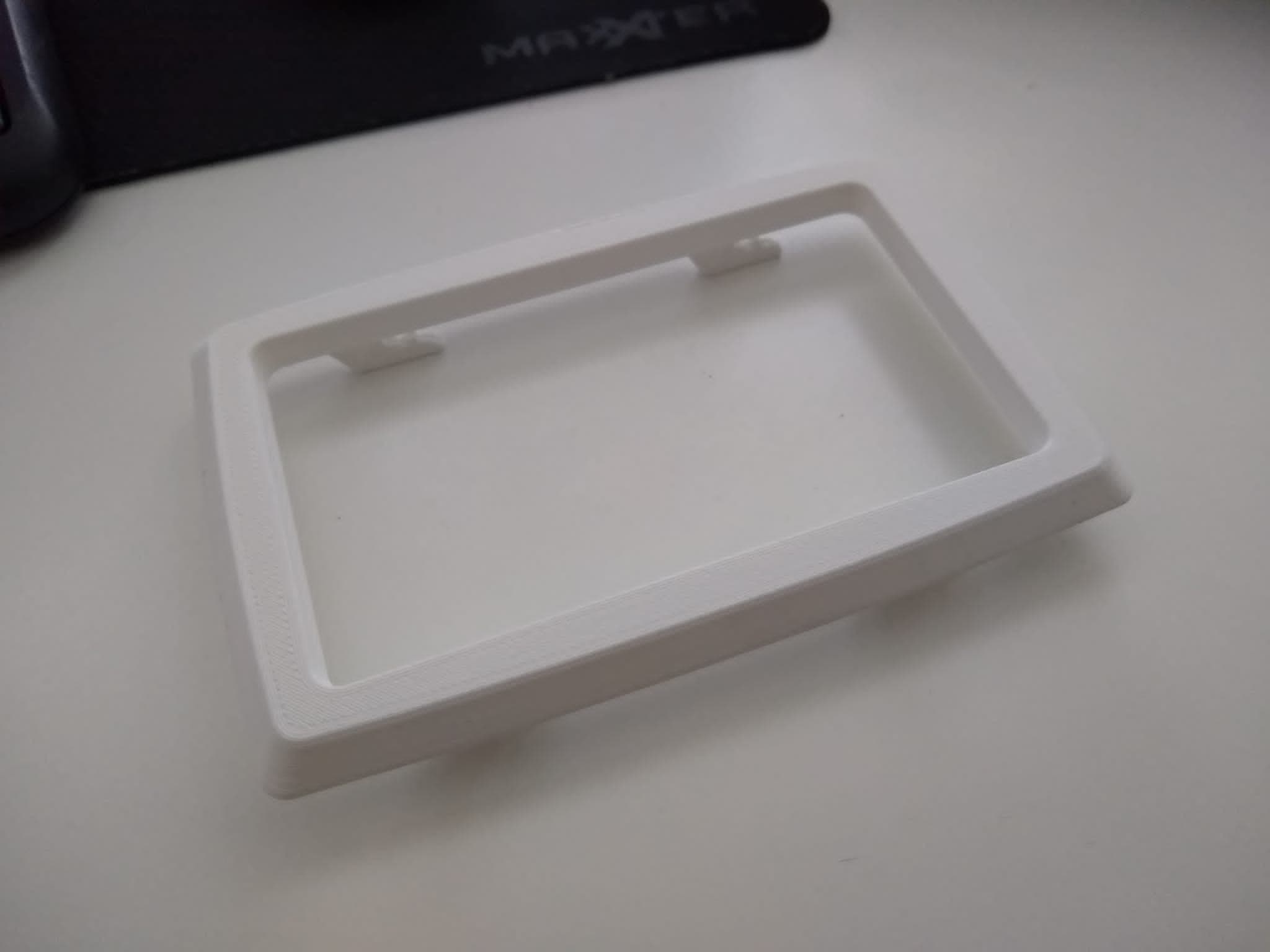

Replacement interior door-handle cover for Type 116 GTV models. The creator notes that the small retaining legs can remain fragile; inspect clip engagement and avoid forcing the cover during installation.

Replacement bracket for the bonnet prop on Type 116 GTV/GTV6 models. The creator printed it in ABS and installed rivet nuts in the original mounting holes so the bracket can be retained with M6 flat-head hex screws; verify mounting security before working under the bonnet.

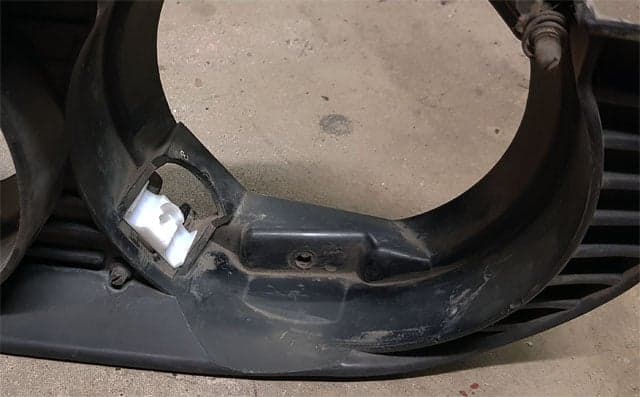

Remixed headlamp alignment cup narrowed by 5% and modified to accept both rectangular and round headlamp pins for Alfetta GT, GTV and GTV6 applications. Compare the pin form and adjustment range with the original before installation.

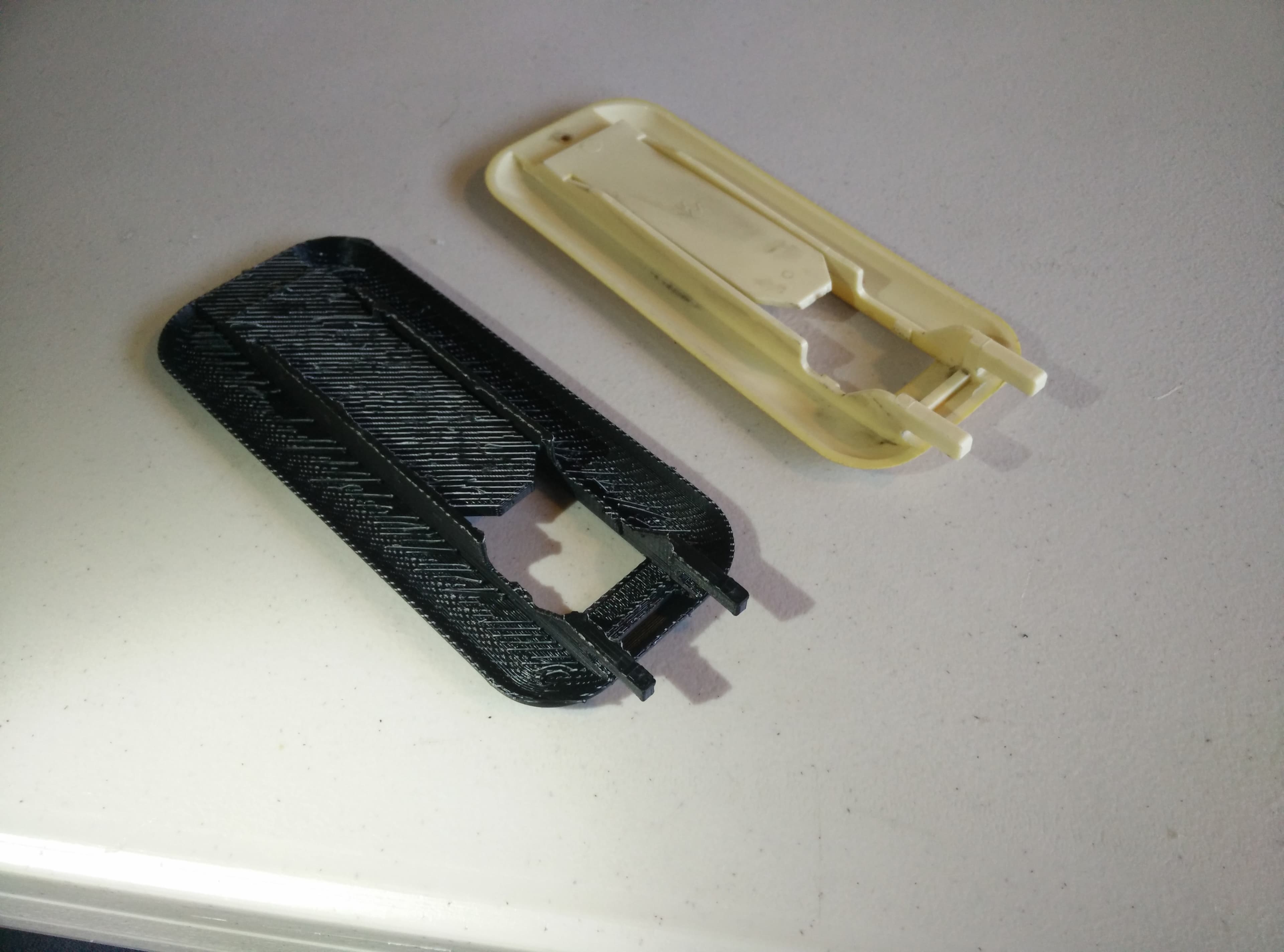

Replacement trim surround for the manual moonroof lever. The creator directly copied an original GTV6 part and notes that these surrounds become brittle with age. The unverified number mentioned by the creator is deliberately not assigned as an OEM association.

Two source-provided clip geometries for retaining the windscreen-washer nozzles and hose on Tipo 916 Spider and GTV wiper assemblies. Compare the original clip location and hose routing, then select the matching source variant before installation.

Replacement insert for the B-pillar rubber seal moulding used on Tipo 916 Spider and GTV models. The creator specifies three printed copies per seal assembly, 0.28 mm layers, no supports and 100% infill; print the source file three times and test the rubber-mould engagement before final installation.

Replacement headlight alignment cup designed by Houstin Lichtenwalner for a 1985 GTV6. It works with the original screw to pull or push the headlamp during alignment. The creator reports successful versions in Taulman Bridge nylon and recommends a robust material.

Replacement clip for the sunroof mechanism. The creator reports a successful test on one car and specifies PLA, a 0.8 mm nozzle, and 100% infill.
